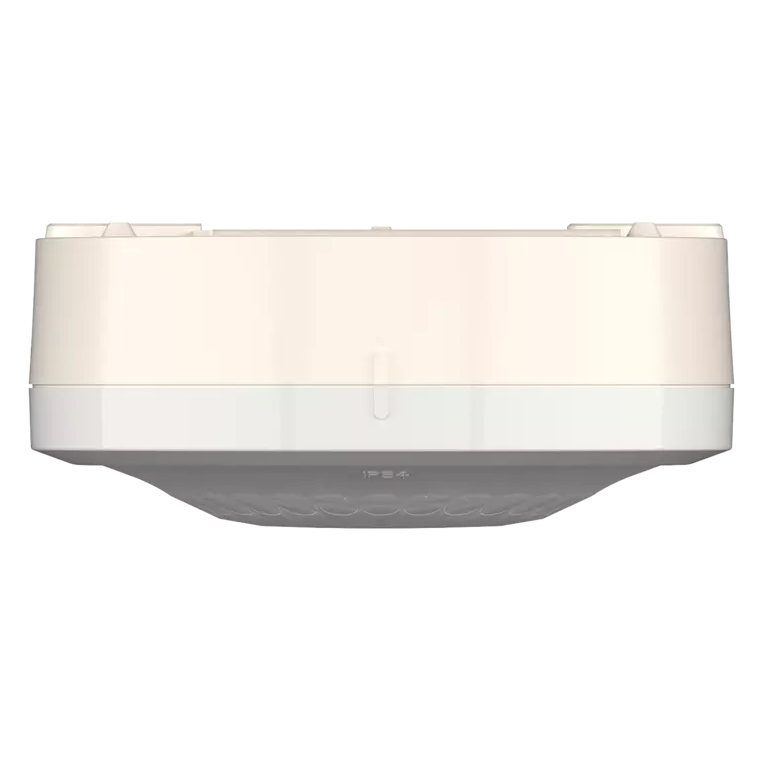

Theben LUXA 103 S360-100-12 AP WH 1 Channel Surface PIR Sensor
1030062
Features
  • Passive infrared presence detector, surface-mounting
  • 1 channel light (relay 230 V)
  • Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
  • Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
  • Networking with wall detector theMura Slave possible
  • Connection option for push-button for manual switching
  • Operation as fully or semi-automatic possible
  • One directional brightness measurement (mixed light measurement)
  • Teach-in function, pulse function, test function, staircase lighting function
  • Ready for operation immediately due to factory presetting
Theben Logo 4c2
Code Type Detection Angle Colour Power
1030062 Ceiling Installation 360deg White 230V AC
(No drawing available)
