SAL Universal Single Circuit Track & Accessories
STR4800
Features

Application

Designed for decorative and creative retail applications

Design Specifications

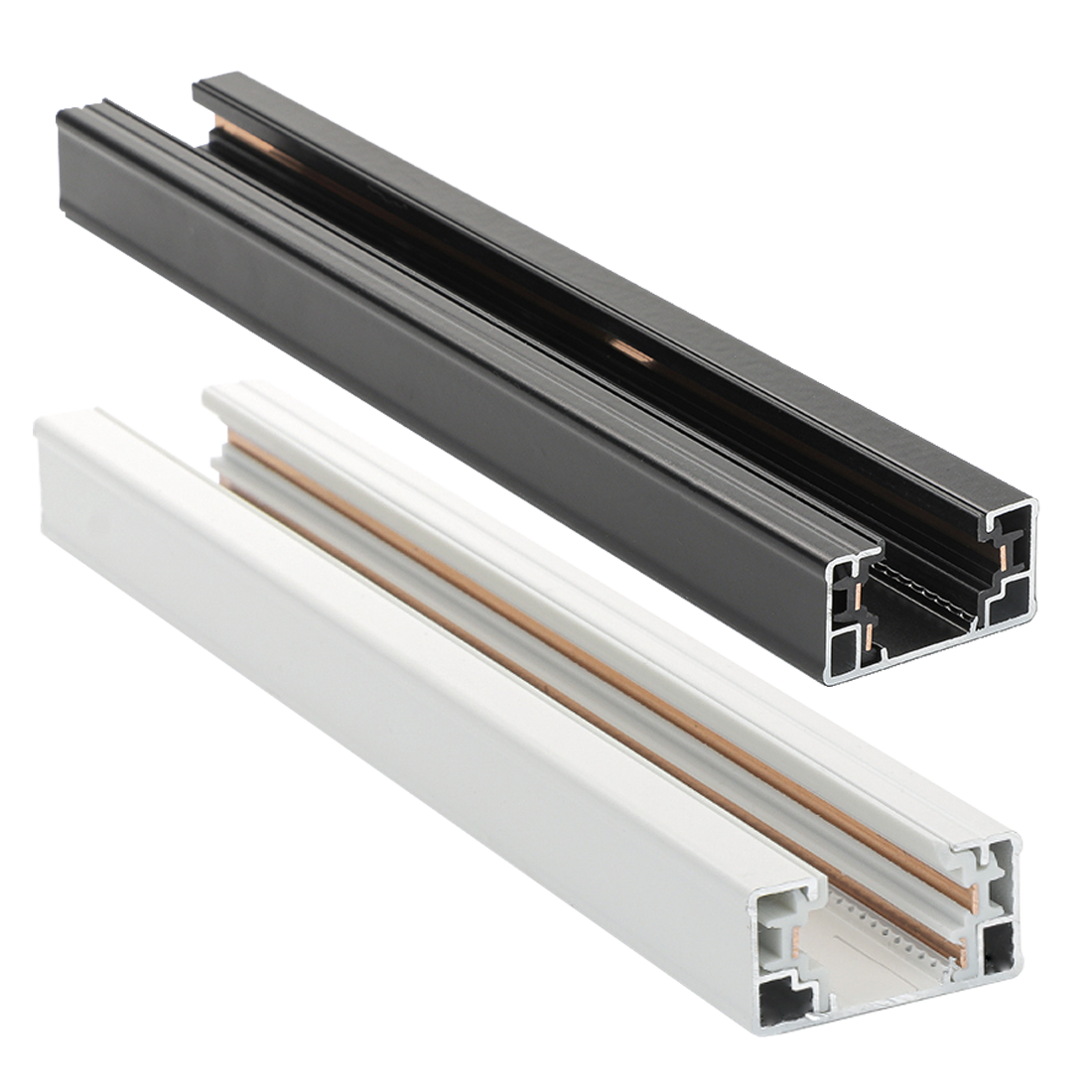

  • Extruded aluminium profile, with quality powder coated finish

  • Length 1 m or 2 m

  • Complete with end cap and live end

  • Track components: Straight joiner, Live end, Live centre feed, L-shaped joiner, T-shaped joiner, Cross joiner, Track joiner, Suspension kit

  • Rating: TOTAL track capacity 10A, maximum (mass) load limit per track adaptor is 2kg

Code Description Input Voltage Colour Dim (mm) Notes
STR4800-1-BK Universal Track 240 Black 1000 Indent Item
STR4800-1-WH Universal Track 240 White 1000 Indent Item
STR4800-2-BK Universal Track 240 Black 2000 Indent Item
STR4800-2-WH Universal Track 240 White 2000 Indent Item
STR4804-BK L Shaped Joiner 240 Black N/A Indent Item
STR4804-WH L Shaped Joiner 240 White N/A Indent Item
STR4803-BK Live Centre Feed 240 Black N/A Indent Item
STR4803-WH Live Centre Feed 240 White N/A Indent Item
STR4802-BK Live End 240 Black N/A Indent Item
STR4802-WH Live End 240 White N/A Indent Item
STR4801-BK Joiner 240 Black N/A Indent Item
STR4801-WH Joiner 240 White N/A Indent Item
STR4805-BK T Shaped Joiner 240 Black N/A Indent Item
STR4805-WH T Shaped Joiner 240 White N/A Indent Item
(No drawing available)
