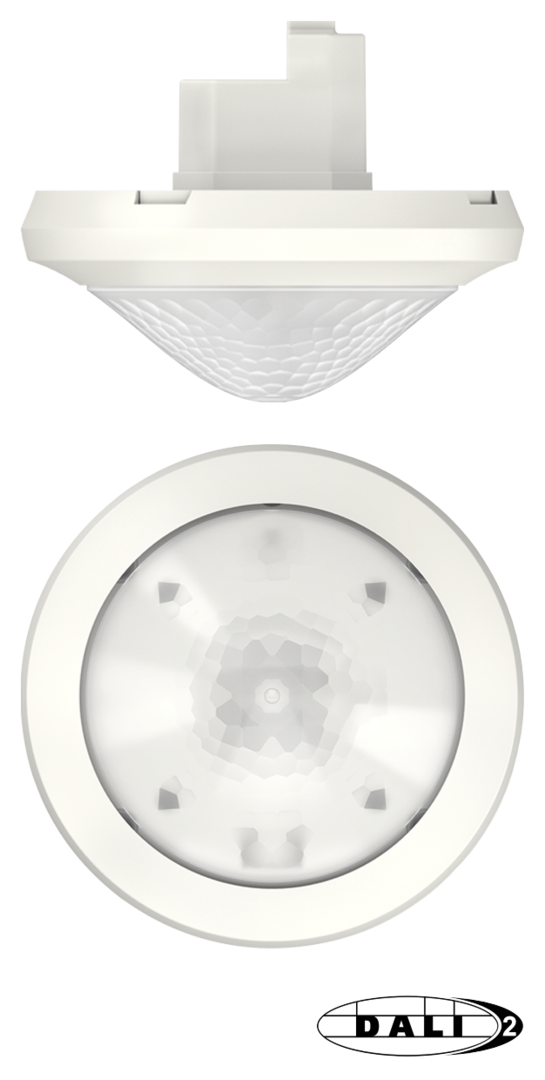

Theben theRonda P360-330 DALI UP WH
Features
Passive infra-red presence detector for flush-mounted ceiling installation, DALI-2 certified
Circular detection area 360°, Ø 24 m, (452 m
2
) at mounting height 3 m
3 channels light DALI-2 addressable
DALI-2 technology according to IEC 62386 Parts 101 and 103
Flexible assignment of up to 3 light groups towards one DALI line
Easy, intuitive configuration of the DALI groups
Up to 3 push-button inputs
Using of conventional push-buttons for maximum design freedom
Switch or constant light control mode with stand-by function
Dimmable lighting in switch mode with stand-by function
Choice of fully or semi-automatic operation
Adjustable brightness switching value
Teach-in function via remote control or push-button
Setting of room correction factor (Automatic adjustment of brightness measurement)
Light time delay can be set
Calibrated 3 channels light measurement
Brief-presence
Self-learning time delay
Extremely easy setting of energy saving characteristics with the new „eco plus“ function
Selectable control speed
Manual override via remote control or pushbutton
Behavior after push button operation selectable (school / office)
Test mode light
Test-Mode presence
Remote-controllable
Scenes
Sensitivity adjustable
Detection area can be limited using cover clip
Extension of detection area via Master/Slave or Master/Master switching
Optimized handling by installer during assembly, wiring, commissioning
Specification

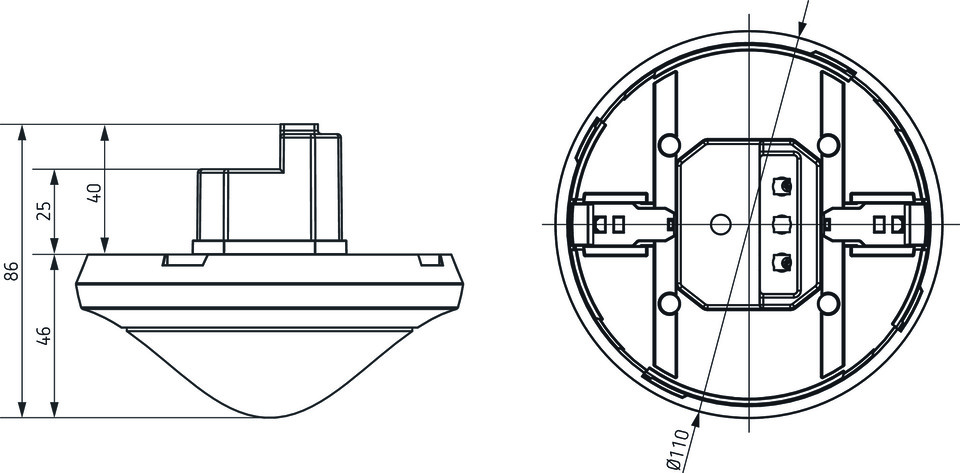

Technical Drawing
Download
Code
Cat#
Type
Detection Range
Colour
Features
Outdoor Use
Power
Notes
2080045
2080045
Motion Detector (PIR)
452 m²
White
Ceiling installation, mixed light measurement, 2-10m installation height
IP54
110-230V AC, 50-60Hz
Indent Item
2080045-o12538v78-theRonda-P360-330-DALI-UP-WH-Data-sheet.pdf
4.5 MB
2080045-o6264v32-theRonda-P360-330-DALI-Operating-instructions.PDF
3 MB
