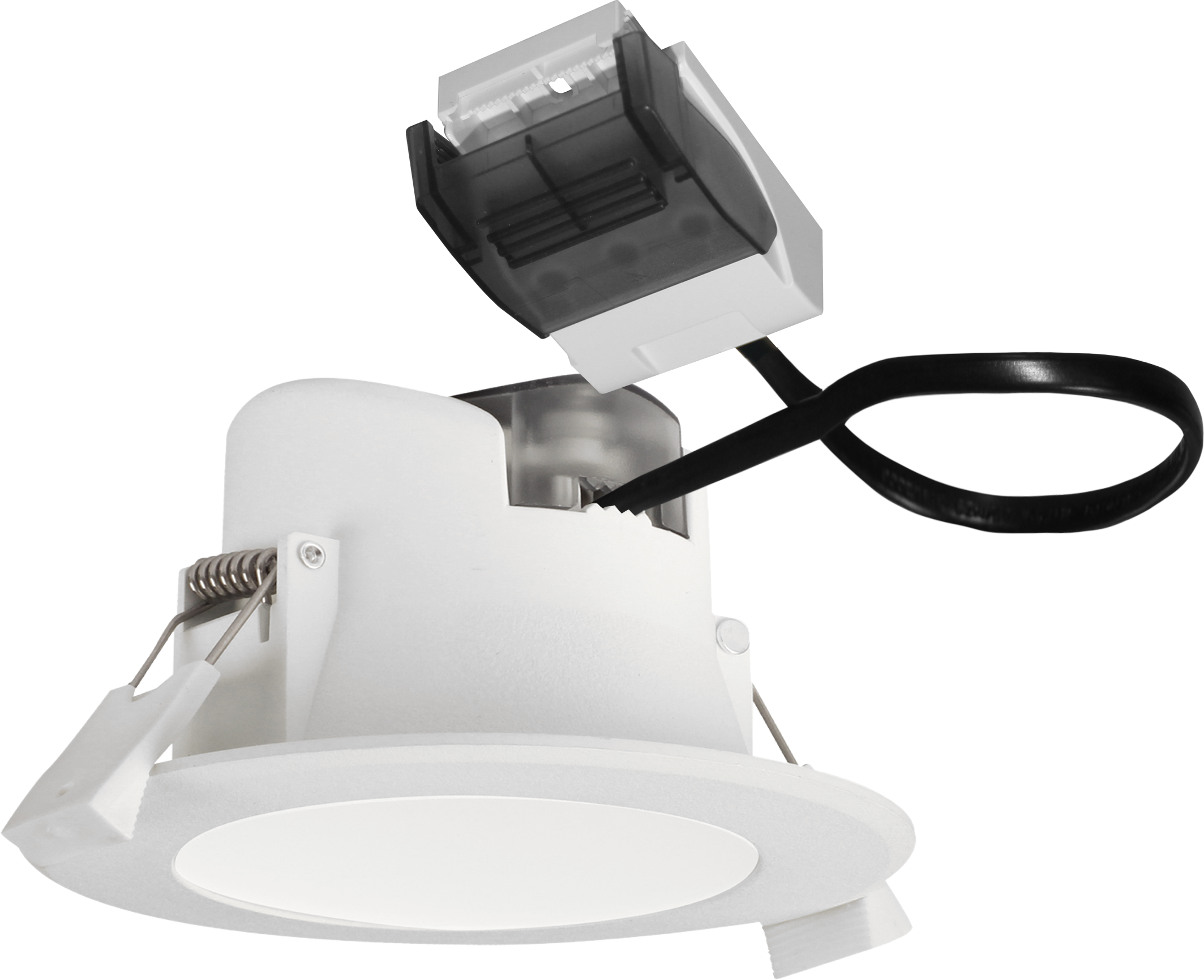

SAL WAVE Downlight IP44 7W LED Terminal Block
S9064 TCT
Features

Dimmable IP44 LED downlight with selectable colour temperature.

Application

Ideal for any residential or commercial interior space.

Design Specifications

  • Easy selectable colour temperature with an inbuilt DIP switch, 3000K/4000K/5700K
  • Poly covered aluminium body, IC-F rated, double insulation
  • Quality opal polycarbonate diffuser
  • Integral constant current trailing edge dimmable LED driver, with a terminal block
  • High efficiency SMD LED chips

Performance

Dimmable Driver - Yes

Dimmer Type - Trailing edge

SAL Logo 01
Code Cat# Input (V) Power (W) Lumen (lm) CCT (K) CRI Beam Angle Dimmable Cutout Size Dims (mm)
S9064TCWH-T S9064TC/WH/T 230 7 750/850/800 3000/4000/5700 80 90 deg YES 72mm 95mm x 58mm
(No drawing available)
