Schmersal Stainless Steel Magnetic Safety Sensor - BNS 40S-12Z-C

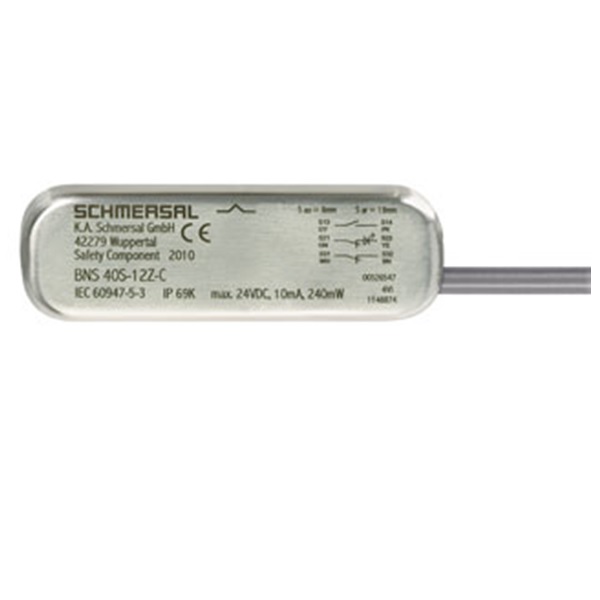

BNS 40S.jpg
Features
  • Schmersal magnetic safety sensors monitor the position of sliding, hinged and removable safety guards.
  • Ideal for use in very dirty environments, or where high hygienic standards are required (food production areas).
  • Able to be concealed under non-magnetic materials.
  • Stainless steel enclosure.
  • Cable connection suitable for the food industry.
  • Rectangular body and long life.
  • Especially easy to clean through concealed threaded holes at the rear.
  • Coded - recommended actuators BPS 40S-1, BPS 40S-2, BPS 40S-1-C, BPS 40S-2-C, must be purchased separately.
  • Protection class IP69K.
  • Other varieties available on request.
  • Minor differences between the printed image and the original product may exist.
Code Cat# Dimensions W x H x L Switching Voltage and Capacity Contacts LED Switching Display Electrical Connection Cable Length Notes
1215518 BNS 40S-12Z-C 88mm x 27mm x 14.5mm Max. 100 VAC/DC / Max. 3 W 1NO/2NC No Cable 1m Indent Item
