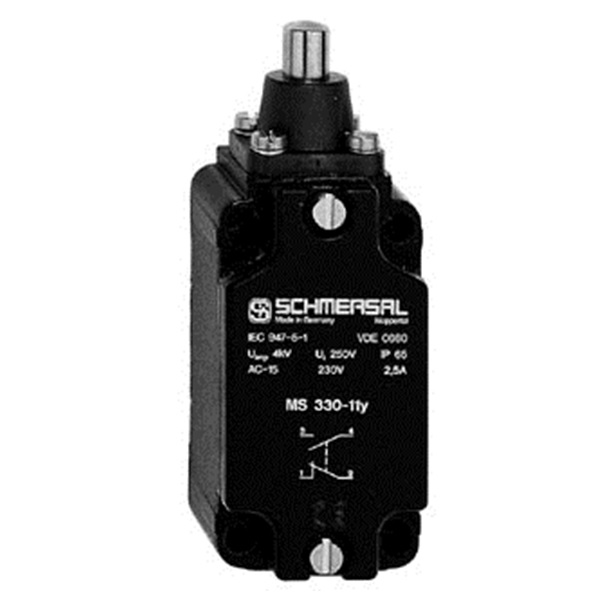

Schmersal Light Metal Position Switch with Plunger S - MS 330-11Y
Features
  • Position switches with safety function are suitable for sliding and hinged safety guards which need to be closed to ensure the necessary operational security.
  • In combination with safety monitoring modules these Type 1 position switches achieve Control Category 3 or 4 to EN ISO 13849-1.
  • Metal enclosure with plunger S.
  • Solid silver contacts.
  • Suitable for low actuating speeds.
  • Free of silicon.
  • 1 cable entry M 20 x 1,5.
  • NOTE - actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch.
  • (Minor differences between the printed image and the original product may exist).
Code Cat# Dimensions (W x L x H) Material of Housing Control Element Design Switching Principle Electrical Connection Utilisation Category Notes
1160614 MS 330-11Y 40mm x 40mm x 87mm Cast iron Normally open contact (NO), Opener (NC) Snap switch element Screw connection AC-15: 230 V / 2,5 A Indent Item
