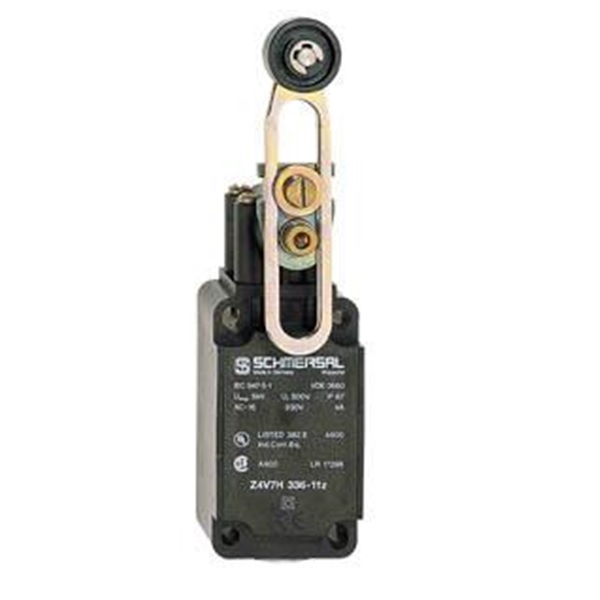

Schmersal Plastic Position Switch with Roller Lever 7H - Z4V7H 336-11Z
Features
  • Schmersal Type 1 position switches according to EN ISO 14119 are for determining the position and monitoring of movable components on machines and for protective equipment that can be moved laterally or is rotatable.
  • In combination with safety monitoring modules these Type 1 position switches achieve Control Category 3 or 4 to EN 954-1.
  • Thermoplastic enclosure with roller lever H (lever angle adjustable in 10° steps).
  • Solid silver contacts.
  • Good resistance to oil and petroleum spirit.
  • Actuator heads can be repositioned by 4 x 90°.
  • Double insulated.
  • Snap action with constant contact pressure up to switching point.
  • 1 cable entry M 20 x 1,5.
  • ONLY FOR POSITIONING TASKS.
  • (Minor differences between the printed image and the original product may exist).
Code Cat# Dimensions (W x L x H) Material of Housing Control Element Design Switching Principle Electrical Connection Utilisation Category Switching Frequency
1155768 Z4V7H 336-11Z 40.5mm x 57mm x 173.5mm Thermoplastic Normally open contact (NO), opener (NC) Snap switch element Screw connection AC-15: 230 V / 4 A, DC-13: 24 V / 4 A max. 5000 /h
