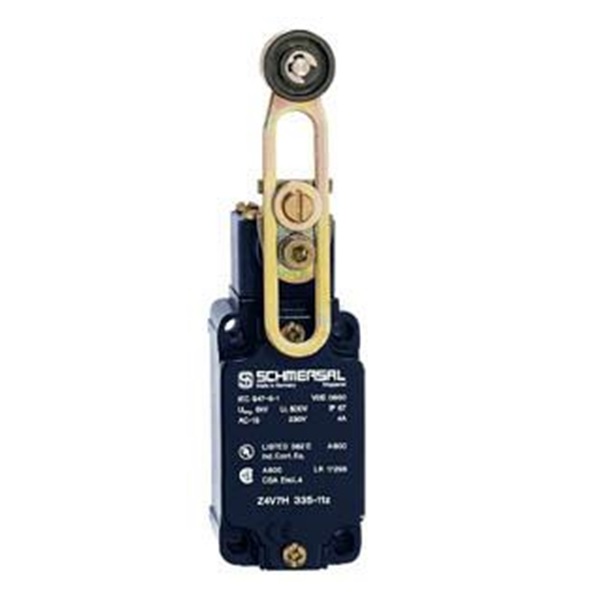

Schmersal Metal Position Switch with Roller Lever 7H - Z4V7H 335-11Z
Features
  • Schmersal Type 1 position switches according to EN ISO 14119 are for determining the position and monitoring of movable components on machines and for protective equipment that can be moved laterally or is rotatable.
  • In combination with safety monitoring modules these Type 1 position switches achieve Control Category 3 or 4 to EN 954-1.
  • Metal enclosure with roller lever H (lever angle adjustable in 10° steps).
  • Large contact break.
  • Solid silver contacts.
  • Good resistance to oil and petroleum spirit.
  • Actuator heads can be repositioned by 4 x 90°.
  • Switching system separated from snap action system, providing constant switching point independent of contact wear.
  • 1 cable entry M 20 x 1,5.
  • ONLY FOR POSITIONING TASKS.
  • (Minor differences between the printed image and the original product may exist).
Code Cat# Dimensions (W x L x H) Material of Housing Control Element Design Switching Principle Electrical Connection Utilisation Category Switching Frequency
1161691 Z4V7H 335-11Z 40mm x 57.25mm x 183mm Aluminium Normally open contact (NO), opener (NC) Snap switch element Screw connection AC-15: 230 V / 4 A, DC-13: 24 V / 4 A max. 5000/h
