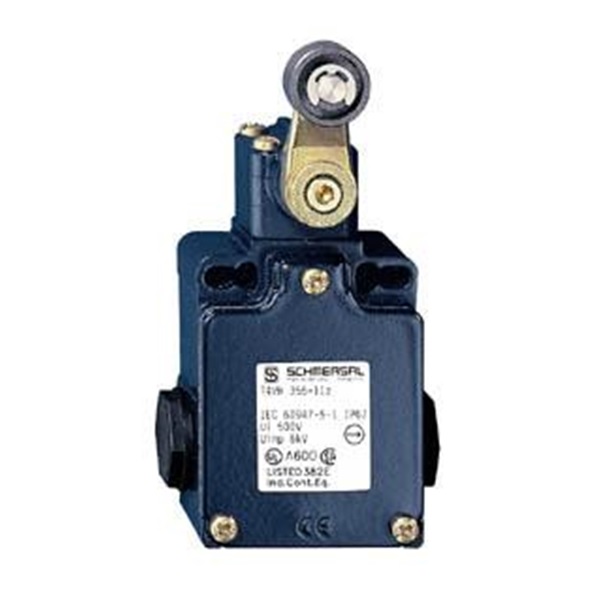

Schmersal Metal Position Switch with Roller Lever H - Z4VH 355-11Z

Features

Schmersal Type 1 position switches according to EN ISO 14119 are for determining the position and monitoring of movable components on machines and for protective equipment that can be moved laterally or is rotatable.
In combination with safety monitoring modules these Type 1 position switches achieve Control Category 3 or 4 to EN 954-1.
Metal enclosure with roller lever H (lever angle adjustable in 10° steps).
Good resistance to oil and petroleum spirit.
Actuator heads can be repositioned by 4 x 90°.
Snap action with constant contact pressure up to switching point.
3 cable entries M 20 x 1,5.
(Minor differences between the printed image and the original product may exist).

Code	Cat#	Dimensions (W x L x H)	Material of Housing	Control Element Design	Switching Principle	Electrical Connection	Utilisation Category	Switching Frequency	Notes
1166307	Z4VH 355-11Z	66.7mm x 60.55mm x 129.5mm	Aluminium	Normally open contact (NO), opener (NC)	Snap switch element	Screw connection	AC-15: 230V/4A, DC-13: 24V/4A	max. 5000/h	Indent Item
