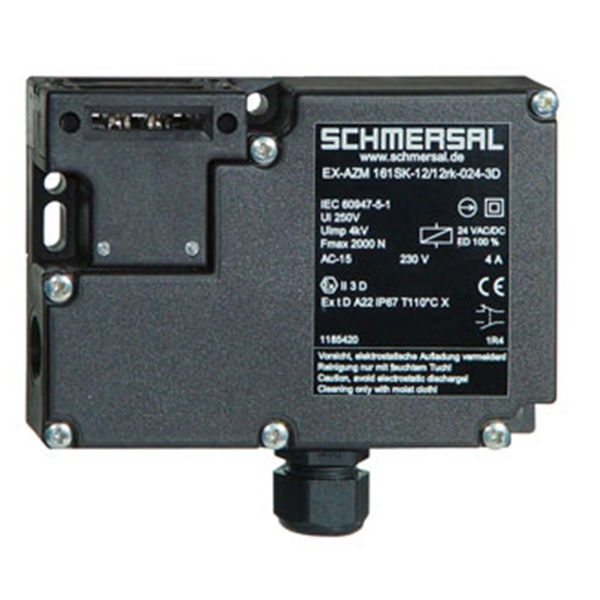

Schmersal Solenoid Interlock for Ex Zones - EX-AZM 161SK-12/12RK-024-3D
Features
  • AZM range solenoid interlocks, operating in combination with control elements of a machine (fail-safe standstill monitors or fail-safe delay timers), ensure that sliding, hinged and removable guarding devices, such as grids, hoods or doors, cannot be opened until hazardous conditions (e,g running-down movements) have come to an end.
  • Ex certified.
  • Thermoplastic enclosure.
  • Two auxiliary and four safety contacts.
  • Actuator sold separately (AZM 161-B-- types).
  • Power to unlock.
  • Long Life.
  • Double insulated.
  • Protection class IP67.
  • Explosion protection dust zone = 22.
  • Other variants available on request.
Code Cat# Dimensions W x H x L Switching Voltage and Capacity Contacts Latching Force Positive Break Force/Travel Electrical Connection Notes
1185420 EX-AZM 161SK-12/12RK-024-3D 130mm x 114mm x 30mm 24 V AC/DC. Max power consumption: 10W 2NO/4NC 30N 20N / 10mm Screw terminals Indent Item
