Schmersal Contact Block - EF10.2
Features
Schmersal contact block for use with E or N series command and signalling devices.
It has a special low-voltage-capable and self-cleaning four-way contact bridge system.
Slow action switching principle.

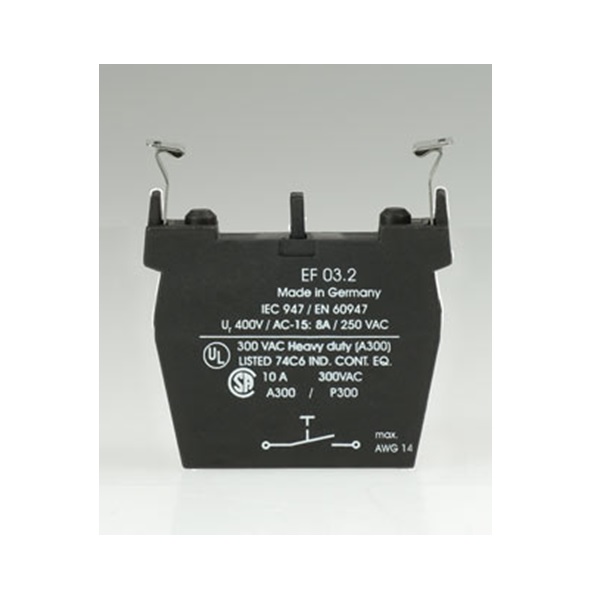

(Picture shown is indicative only).
Specification
Technical Drawing
Download
Code
Cat#
Contact Arrangement
Connection Type
Mounting Flange Position
Wiring Configuration
Dimensions W x L x D
Notes
1006536
EF10.2
1NC
Screw terminals
2
21-22
10mm x 46mm x 60mm
Indent Item
1006536_EF10.2_Schmersal.pdf
179 KB
Schmersal EF contact elements.pdf
329 KB
