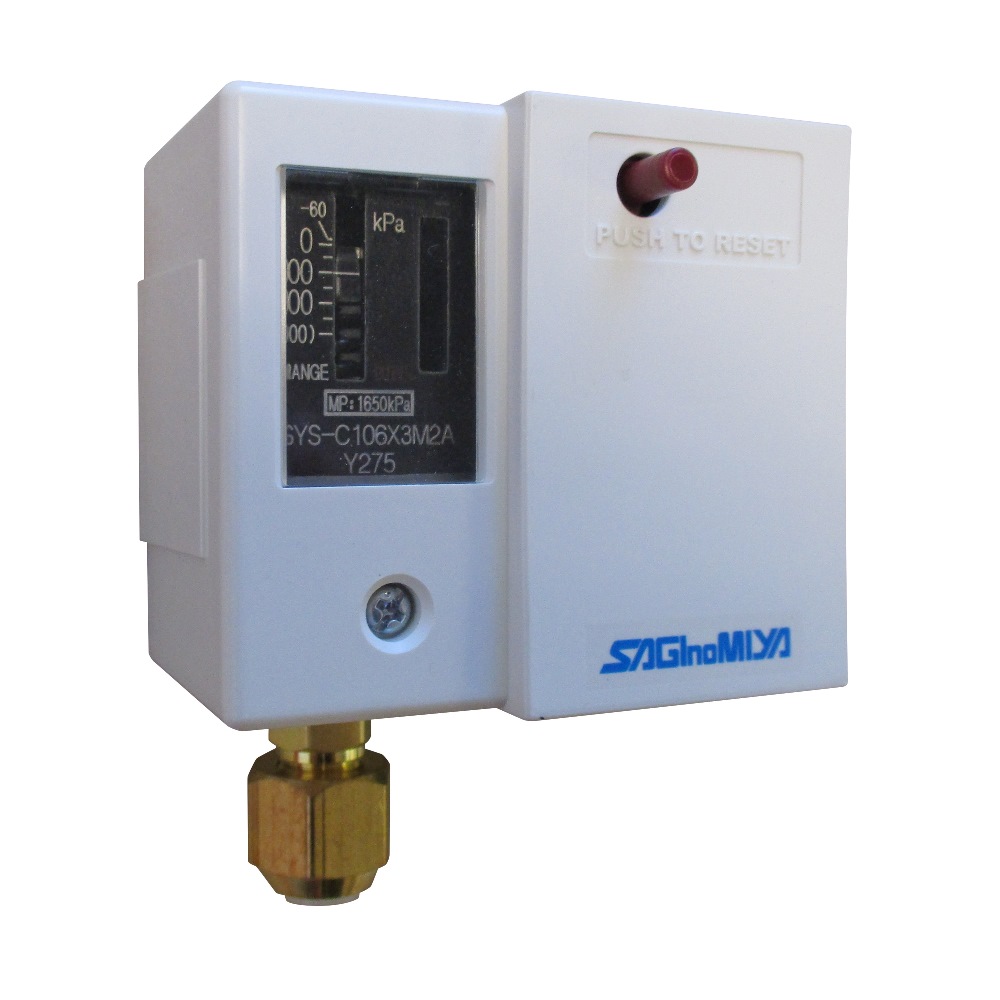

Saginomiya SYS Single Pressure Control (Manual Reset)
SG251
View item in Hamer catalogue: Control on page 5
Features
  • New compact size - these are now the smallest and lightest in the industry.
  • New design - new cover design has a larger and significantly clearer pressure scale plate & window and also covers the top.
  • Reliable bellows technology with proven history of 60 years.
  • Single pressure control with manual reset.
  • For use with fluorinated refrigerants as well as with air and water.
  • Allowable fluid temp: -20°C - 120°C.
  • Flare nut 1/4” 7/16-20 UNF thread.
  • Supplied with mounting bracket.
  • SPDT contact mechanism.
  • See pdf for contact function.
Code Cat# Replaces Old Model Pressure Range Electrical Ratings Power Factor (COSФ) Electrical Ratings 125/250V AC
SG251 SYS-C106X3MA2 SNS-C106XM2 -60 to 600KPa (-8.7 to 87 PSI) Manual reset. Trips on pressure decrease. Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72
(No drawing available)
