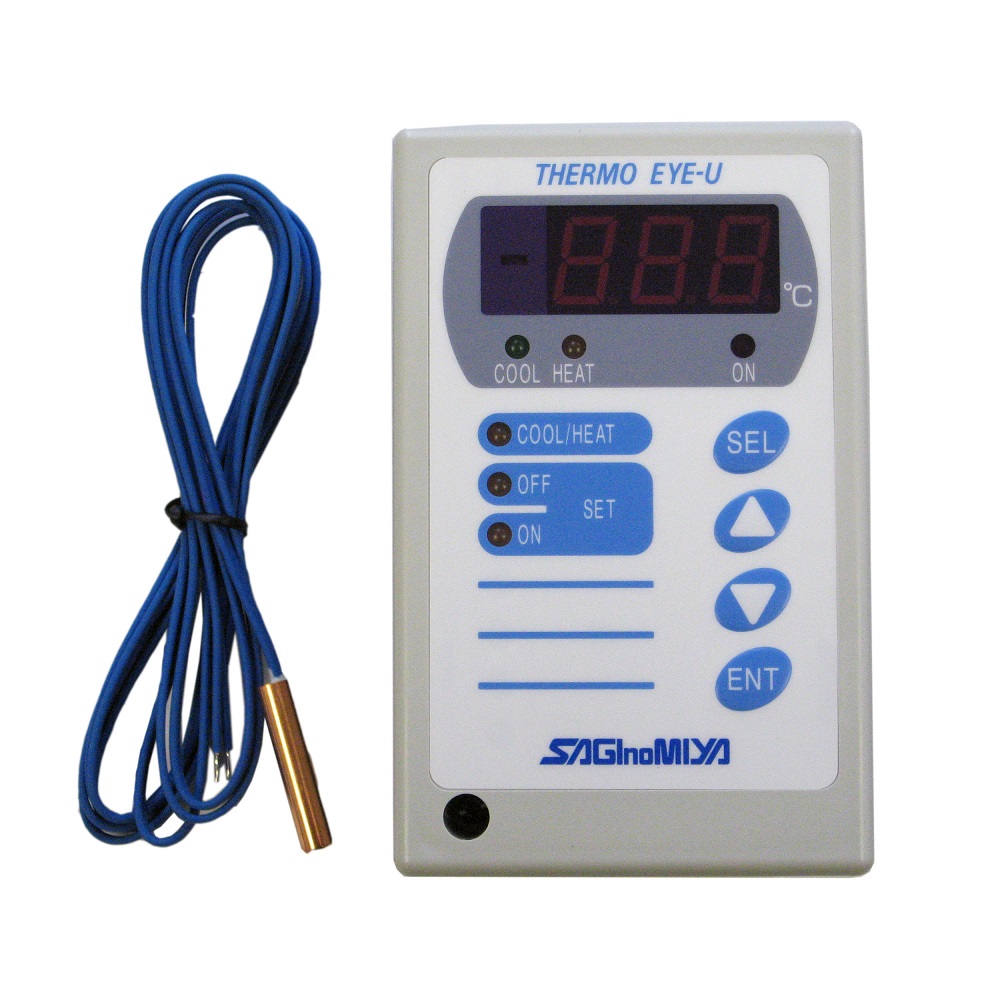

Saginomiya ULE Digital Thermostat
Features
  • Electronic digital thermostat.
  • Large, easy to see LED reading.
  • Back up memory on power failure.
  • Easy operation with a combination of setting knob and arrow keypads.
  • Wall or panel mounting.
  • Sensor holder and panel mounting brackets supplied.
  • 2m lead.
Code Cat# Temp Set Range Ambient Temp. Differential Electrical Ratings Power Factor (COSФ)
SG761 ULE-SD11-011 -50-30°C -10-50°C Min. 0.5°C Power source: 85-264V AC (50/60Hz), Relay output: 250V AC, 6A (cosФ=0.7)
(No drawing available)
