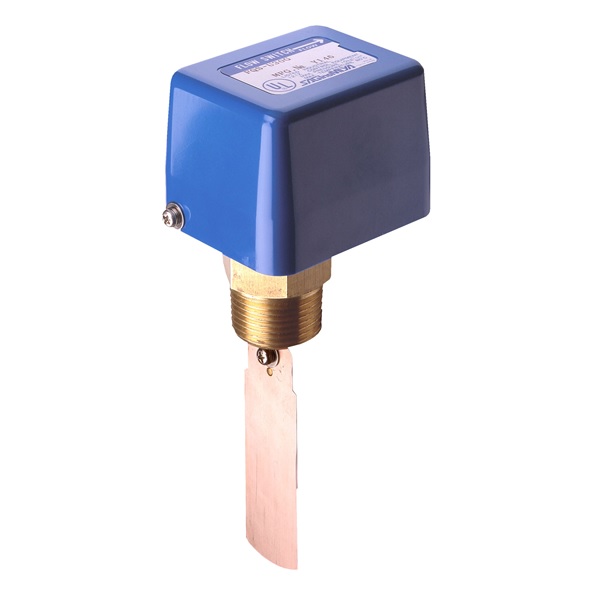

Saginomiya Flow Switch
View item in Hamer catalogue: Control on page 15
Features
  • NOT IP RATED
  • For use on liquid lines such as water, ethylene glycol, or any non-corrosive fluid in chillers, pumps, condensers, boilers etc.
  • SPDT contact mechanism.
  • Paddle consists of three segments that can be removed or trimmed for use in 1 to 6" (25,4mm-152,4mm) pipe.
  • IP20.
  • 1" NPT (25,4mm) connection.
Code Cat# Paddle Size Max Pressure Fluid Temp Max flow Electrical Ratings Power Factor (COSФ) Electrical Ratings 125V AC Electrical Ratings 250V AC
SG900 FQS-U30G 3" (76.2mm) 0.98MPa/142.14 PSI 5-80°C 2m/s Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current:15| Inductive current - Full load:3.5, Locked Rotor: 21 Non-inductive current:15| Inductive current - Full load:2.5, Locked Rotor: 15
(No drawing available)
