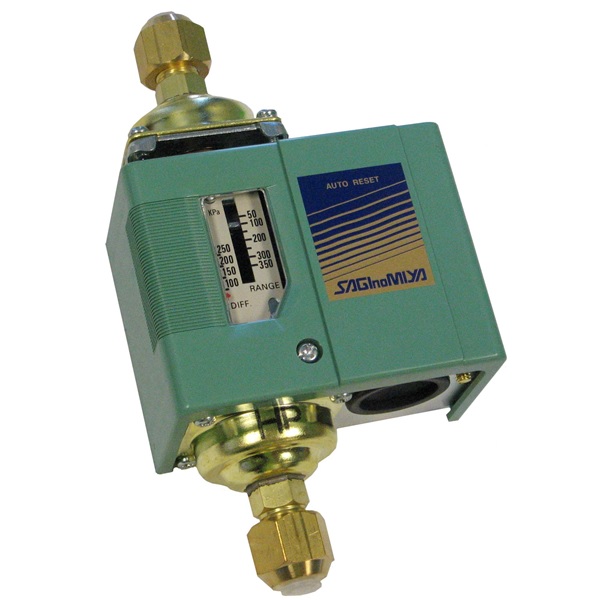

Saginomiya WNS Single Pressure Control- Differential Pressure Control
View item in Hamer catalogue: Control on page 12
Features
  • For use in any application where the relationship between two pressures is critical to proper equipment operation.
  • Auto reset.
  • Allowable fluid temp: -20°C - 120°C.
  • Flare nut 1/4” 7/16-20 UNF.
  • Supplied with mounting bracket.
  • SPDT contact mechanism.



Electrical Ratings Power Factor (COSФ)

  • Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45

Electrical Ratings 125/250V AC

  • Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72
Code Cat# Pressure Range Differential Range
SG293 WNS-C102X 30 to 200KPa (4.35 to 29 PSI) 30 to 150KPa (4.35 to 21.75 PSI)
SG292 WNS-C106X 50 to 350KPa (7.25 to 50.76 PSI) 50 to 250KPa (7.25 to 36.25 PSI)
(No drawing available)
