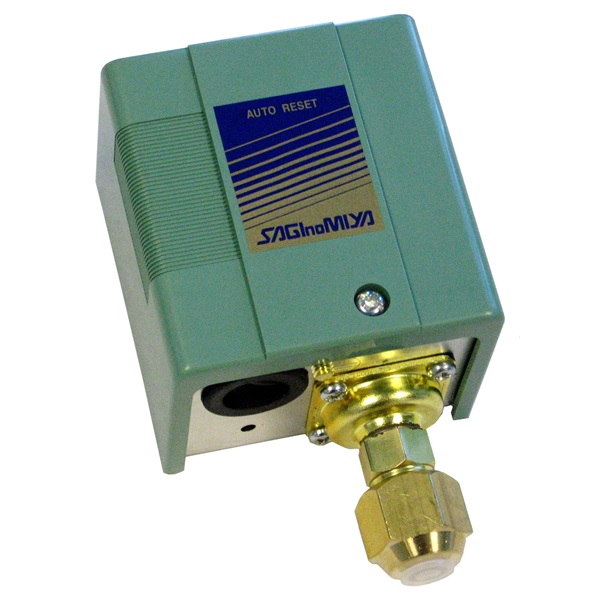

Saginomiya HNS Single Pressure Control- High Pressure Safety Cut Out

View item in Hamer catalogue: Control on page 13

Features

Single pressure control with either automatic or manual reset and high pressure safety cut out.
For use with fluorinated refrigerants as well as with air and water.
Allowable fluid temp: -20°C - 120°C.
Flare nut 1/4” 7/16-20 UNF.
Supplied with mounting bracket.
SPDT contact mechanism.
See pdf for contact function.

Electrical Ratings Power Factor (COSФ)

Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45

Electrical Ratings 125/250V AC

Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72

Code	Cat#	Pressure Range	Differential	Reset Type	Notes
SG200	HNS-C130X	800 to 3000KPa (116 to 435.1 PSI)	Fixed:400KPa (58 PSI)	Automatic	Indent Item
SG210	HNS-C130XM1	800 to 3000KPa (116 to 435.1 PSI)	Manual reset, trips on pressure increase.	Manual	-

(No drawing available)
