Saginomiya DNS Dual Pressure Controls - (Manual Reset)

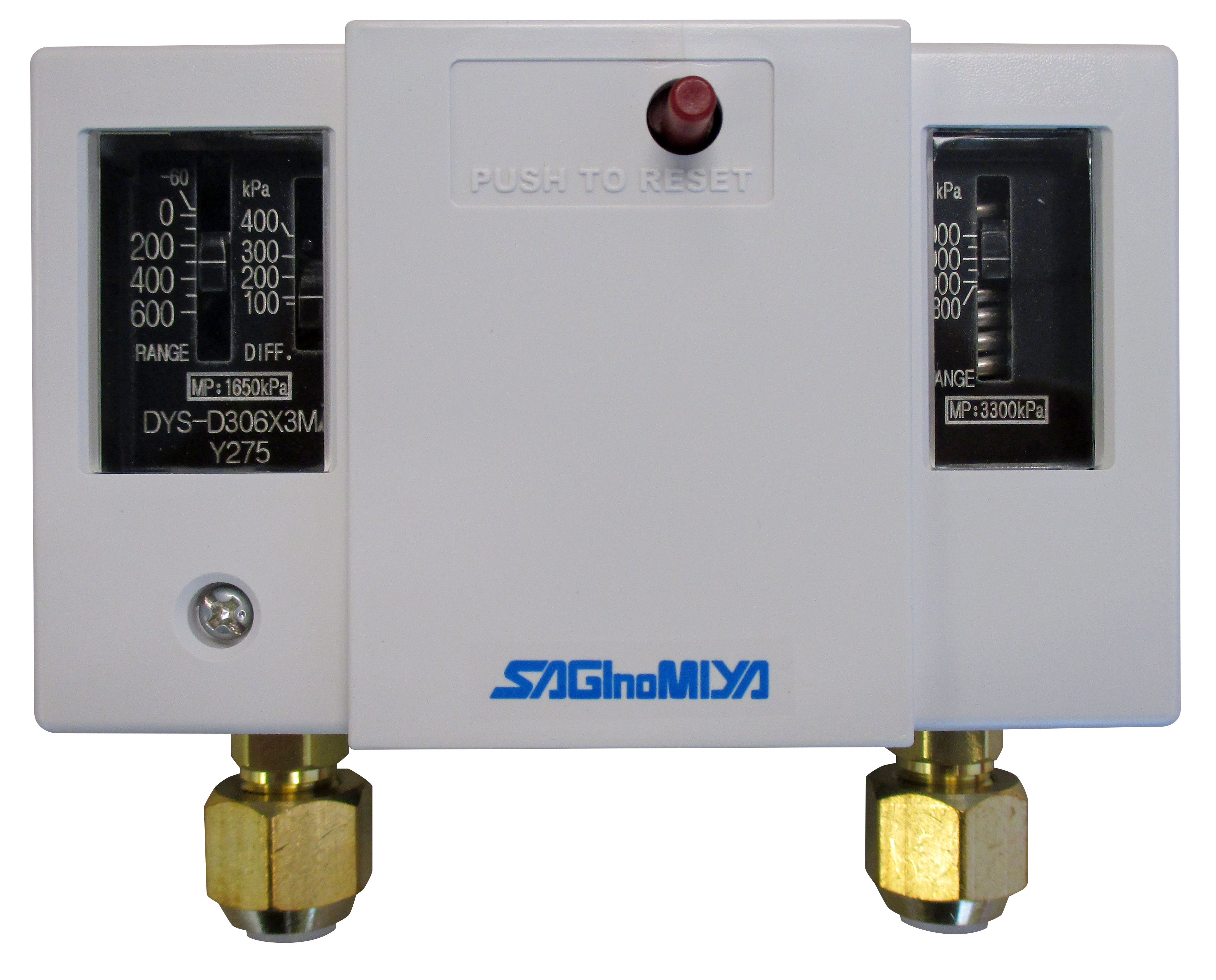

SG111 DYS D306X3MA front
View item in Hamer catalogue: Control on page 11
Features
  • Dual pressure control with manual reset and adjustable differential.
  • For use with fluorinated refrigerants as well as with air and water.
  • Allowable fluid temp: -20°C - 120°C.
  • Flare nut 1/4” 7/16-20 UNF thread.
  • Supplied with mounting bracket.
  • See pdf for contact function.



Electrical Ratings Power Factor (COSФ)

  • Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45

Electrical Ratings 125/250V AC

  • Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72



Code Cat# Pressure Range Low Side Differential Range Low Side Pressure Range High Side Notes
SG111 DYS-D306X3MA -60 to 600KPa (-8.7 to 87 PSI) 60-400KPa (8.7 to 58 PSI) 800 to 3000KPa (116 to 435.1 PSI) Manual reset trips on pressure rise Complete with independent contacts on high and low side
(No drawing available)
