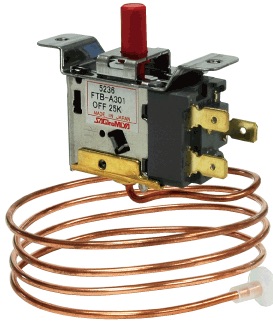

Factory set pressure switch designed for refriger ation units of quantity production such as room air conditioner (heat pump), packaged air conditioner (heat pump), water chiller etc.
SPOT contact mechanism.
Models identified with electrical rating code L can be used for a minimum 0.02A/125V.AC rating.
Models with 0.78 to 1.96 MPa {8 to 20 kgf/cm2} range are also available for HTB and FTB.
Models with 0.098 MPa {1 kgf/cm2} differential are also available for HTB (max. range limit: 1.27 MPa {13 kgf/ cm2}).
Specifiations:
