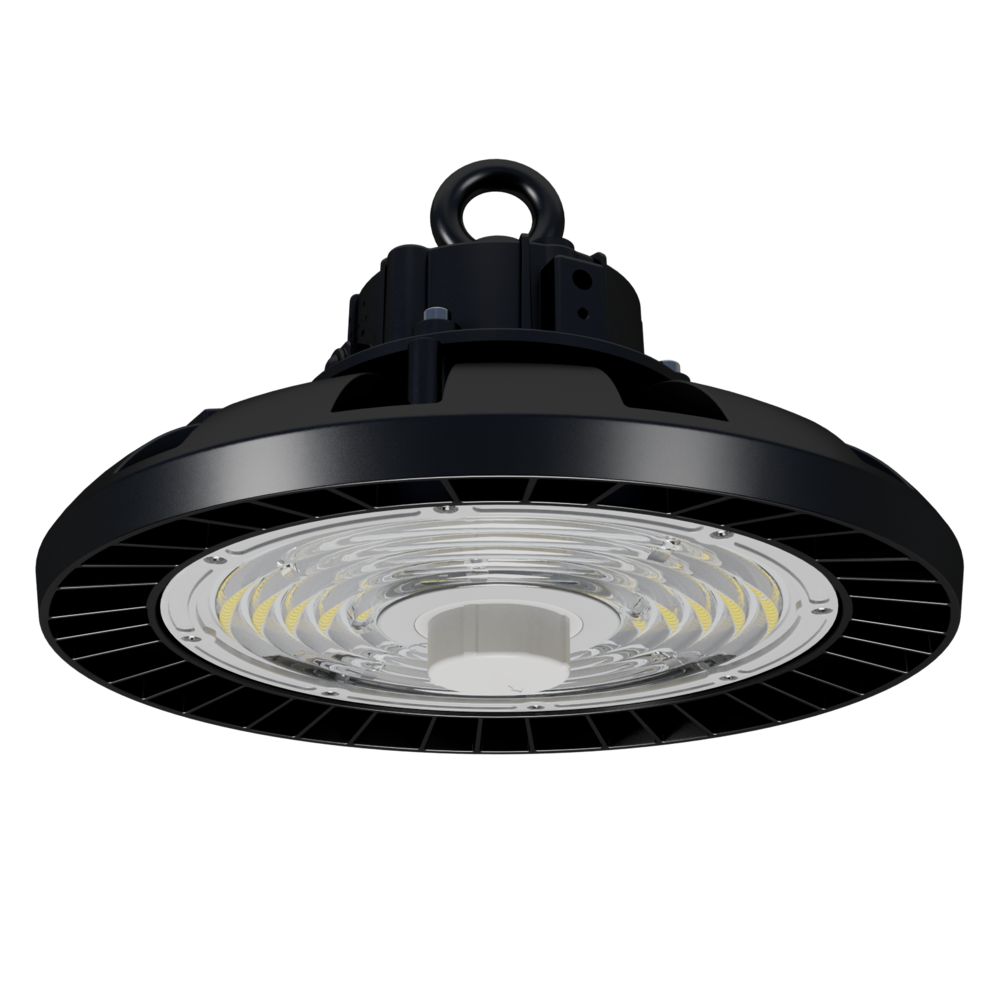

Dimmable, IP65 LED UFO highbay with selectable CCT and power.
Super low-profile dimmable LED highbay, ideal for commercial or industrial warehouse environments.
Integral selectable power 100 / 150 or 200 watts
Integral selectable CCT 3000, 4000 or 5000K
Robust, low-profile die-cast aluminium IP65/IK08 body profile.
High efficiency LED optics, with an impressive > 140lm/W optical performance at 150W/4000K, CRI > 80, 90° beam distribution, polycarbonate lens
Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI (1) addressable signal converter, optional plug and play corridorSTANDBY sensor
Power/lumen settings at;
3000K : 100W/13000lm, 150W/18000lm, 200W/22000lm,
4000K : 100W/14500lm, 150W/21000lm, 200W/26000lm,
5000K : 100W/14000lm, 150W/19500lm, 200W/24000lm.
| Code | Input Voltage (V/AC) | Multiple Wattage | Lumens (lm) | Beam Angle | CCT (K) | CRI | Diameter (mm) | Dim (mm) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|

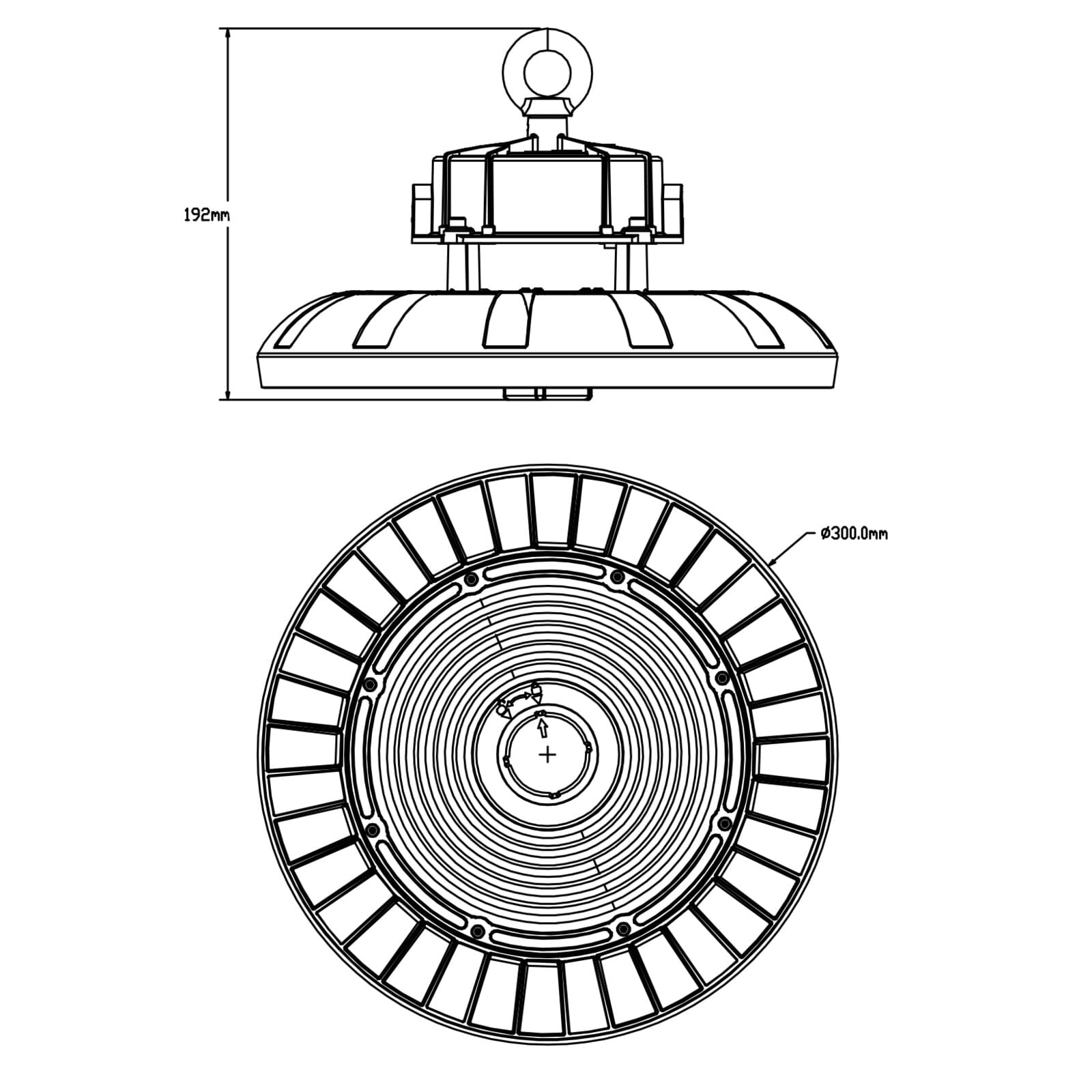

| SHB23MP200TC | 240 | 100/150/200 | 14500/21000/26000 | 90 | 3000/4000/5000 | 80 | 300 | 300(W) x 192(H) | 2.78 |
