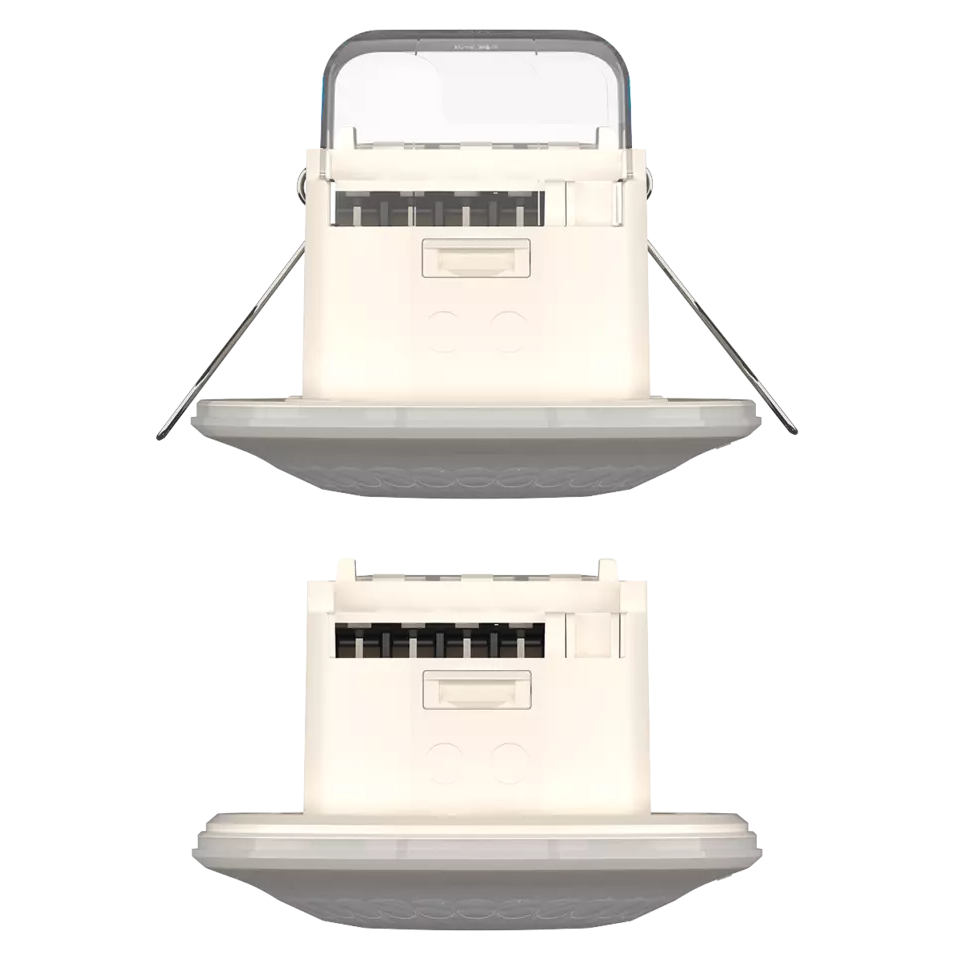

Theben LUXA 103 S360-100-12 DE-UP W Presence 1 Channel Recessed PIR Sensor
Features
Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
1 channel light (relay 230 V)
Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
Networking with wall detector theMura Slave possible
Connection option for push-button for manual switching
Operation as fully or semi-automatic possible
One directional brightness measurement (mixed light measurement)
Teach-in function, pulse function, test function, staircase lighting function
Ready for operation immediately due to factory presetting
