Theben theRonda S360-101 AP WH

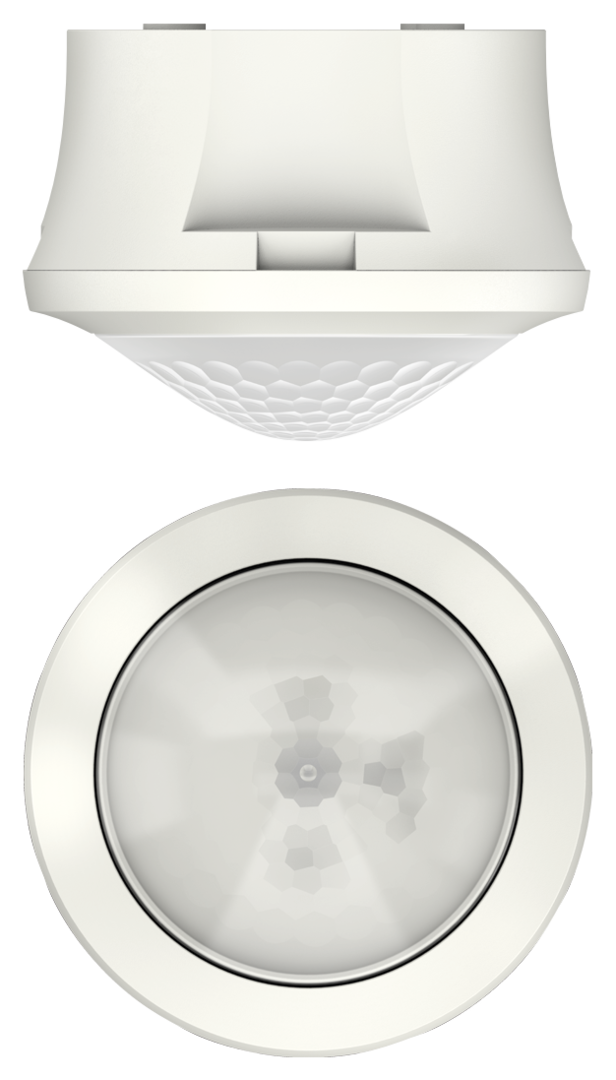

2080555o843v3 theRonda theMova S360 AP WH nn PI
Features
  • Passive infra-red presence detector for ceiling installation
  • Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m
  • 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
  • Automatic motion and brightness-dependent control for lighting and HVAC
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
  • Operation as fully automatic device
  • Brightness switching value configurable, teach-in function
  • Pulse function for staircase light time switch
  • Channel H, presence: relay, floating e.g. for HVAC control
  • Time delay configurable
Code Cat# Type Detection Range Colour Features Outdoor Use Installation Height Power Notes
2080555 2080555 Motion Detector (PIR) 50 m2 White Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m IP54 (when fitted) 2 to 4 mt 230V AC, 50Hz Indent Item

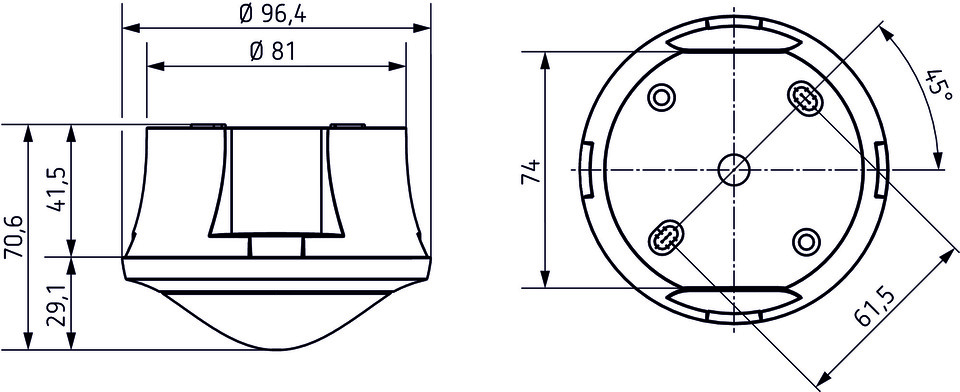

2080555 tech o851v17 theMova AP nn SD
