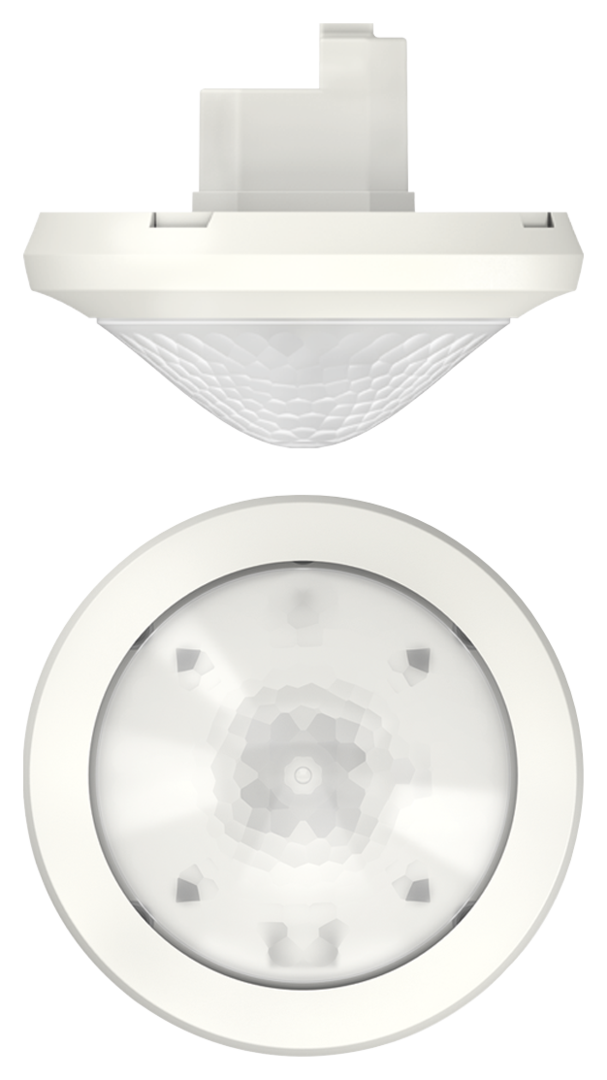

Theben theRonda P360-101
2080025 o884v3 theRonda theMova P360 WH nn PI
Features
  • Passive infra-red presence detector for flush-mounted ceiling installation
  • Circular detection area 360°, up to Ø 24 m (452 m2) at mounting height 3 m
  • 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
  • Automatic presence- and brightness-dependent control for lighting and HVAC
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
  • Choice of fully or semi-automatic operation
  • Adjustable brightness switching value, teach-in function
  • Reduction of switch-off delay time in the event of short presence (brief-presence)
  • Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
  • Pulse function for staircase light time switch
  • Channel H, presence: relay, floating
  • e.g. for HVAC control
  • Switch-on delay and switch-off delay configurable
  • Sensitivity adjustable
  • Detection area can be limited using cover clip
  • Ready for immediate use due to factory preset
  • Test mode for checking function and detection area
  • Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
  • Ceiling installation in flush-mounted socket
  • Ceiling installation also possible with surface-mounted frame
  • User remote control theSenda S, management remote control SendoPro (optional)
Code Cat# Type Detection Range Colour Features Outdoor Use Installation Height Power Notes
2080025 2080025 Motion Detector (PIR) 452m2 White Circular detection area 360°, up to Ø 24 m (452 m2) at mounting height 3 m IP54 2 to 10 mt 110-230V AC, 50Hz-60Hz Indent Item

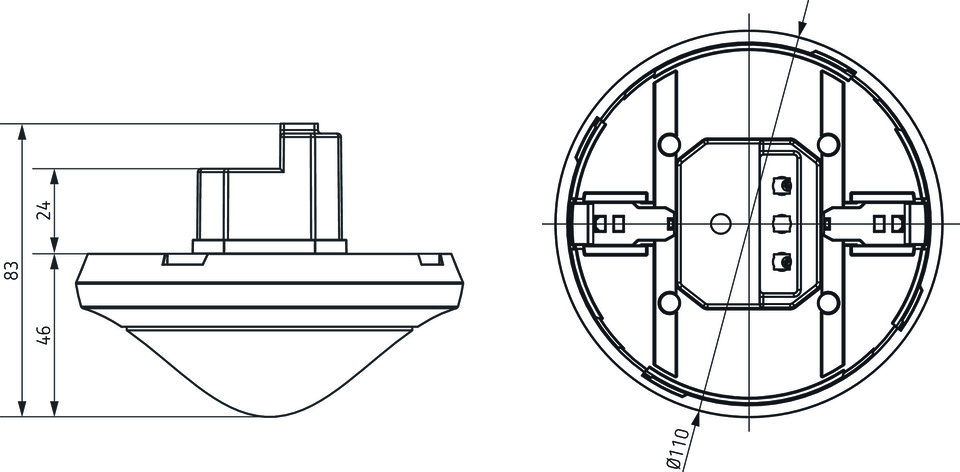

2080025 Dimesions
