Theben thePassa P360-101 UP WH

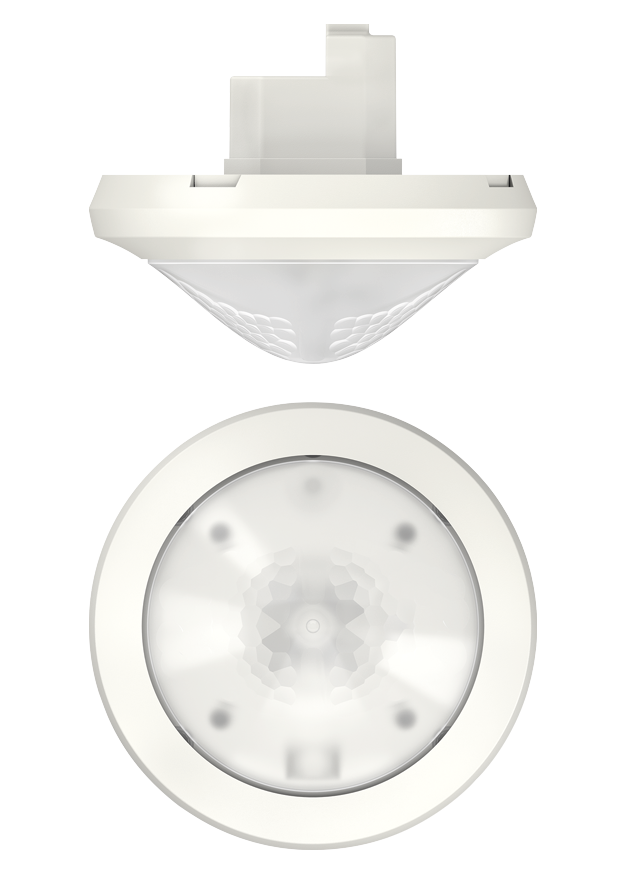

2010300 o13732v3 thePassa WH nn PI
Features
  • Passive infra-red presence detector for flush-mounted ceiling installation
  • Rectangular detection area 360°, 30 x 4,5 m, (135 m2) at mounting height 3 m, for corridors and storage areas, with 2 individually connectable and disconnectable detection zones
  • 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
  • Automatic presence- and brightness-dependent control for lighting and HVAC
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
  • Choice of fully or semi-automatic operation
  • Adjustable brightness switching value, teach-in function
  • Reduction of switch-off delay time in the event of short presence (brief-presence)
  • Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
  • Pulse function for staircase light time switch
  • Channel H, presence: relay, floating
  • e.g. for HVAC control
  • Switch-on delay and switch-off delay configurable
  • Sensitivity adjustable
  • Detection area can be limited using cover clip
  • Ready for immediate use due to factory preset
  • Test mode for checking function and detection area
  • Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other
  • Ceiling installation in flush-mounted socket
  • Ceiling installation also possible with surface-mounted frame
  • User remote control theSenda S, management remote control SendoPro (optional)



Code Cat# Type Detection Angle Colour Features Outdoor Use Installation Height Power Notes
2010300 2010300 Motion Detector (PIR) 360° White Ceiling Installation, Mixed Light Measurement, Maximum Height 15M IP54 2 to 6 mt 110-230V AC, 50-60Hz Indent Item

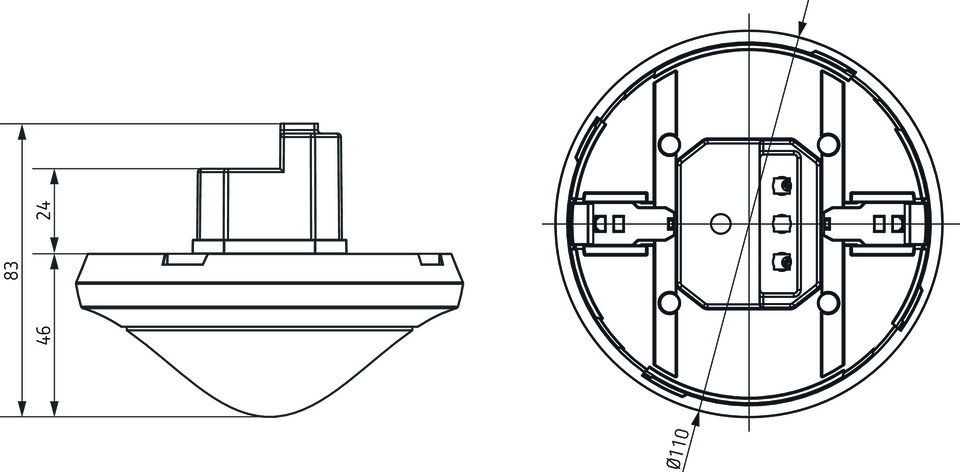

2010300 o877v17 theRonda theMova nn SD
