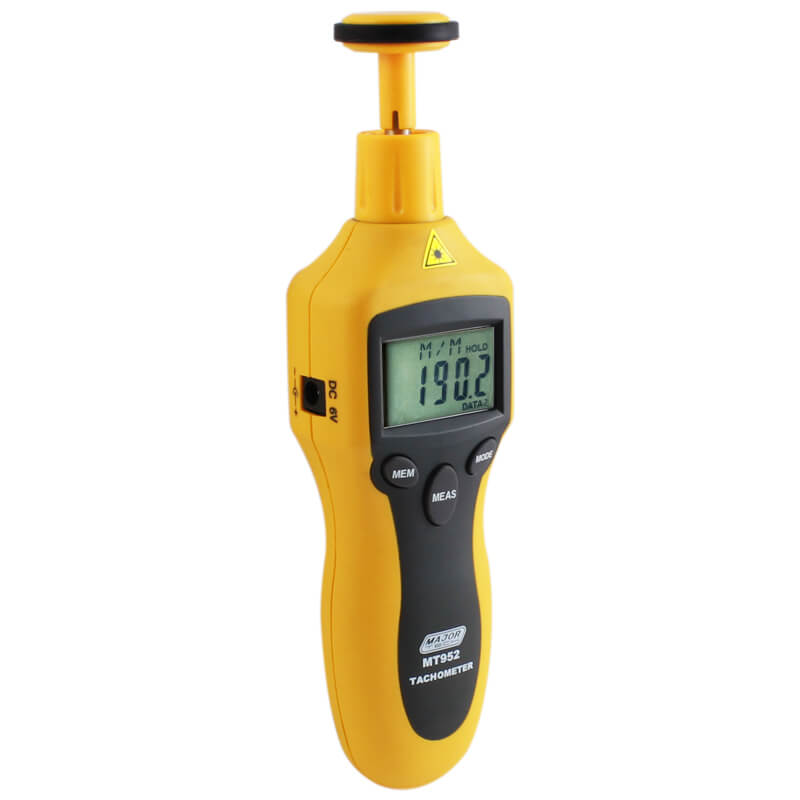

Major Tech Digital Tachometer Non-Contact and Auto-Ranging
MT952 Web
Features

The MT952 is a combination non-contact and contact digital tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000 rpm. The MT952 is supplied standard with an adaptor that converts the MT952 into a tachometer for measuring surface and axial speeds. The meter is capable of various measurements such as Rotational Speed, Total Revolutions, Frequency, Surface speed and length. The instrument is ideally suited for use with engines, process machinery, motors and machine tools.

Features:

  • Combination non-contact and contact digital tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000 RPM
  • RPM Contact range 2 - 20 000 RPM
  • RPM Non-contact range 2 - 100 000 RPM
  • Detecting distance 50-500mm
  • 5 digital backlit LCD
  • Auto Range
  • Data Hold
  • 40 reading memories
  • Min/Max/Avg
  • Resolution 0.1 RPM
  • Built-in laser spot

Accessories:

  • Soft carrying case
  • 9V battery
  • Instruction manual
  • 3 x MT905
  • 1 x MT952CW



Major Tech web logo
Code Cat# Contact Non-Contact Detection Distance
MT952 MT952 2 to 20000RPM test range, 0.1RPM resolution, ±(0.05% +1) accuracy 2 to 99999RPM test range, 0.1RPM resolution, ±(0.05% +1) accuracy 50mm to 500mm
(No drawing available)
