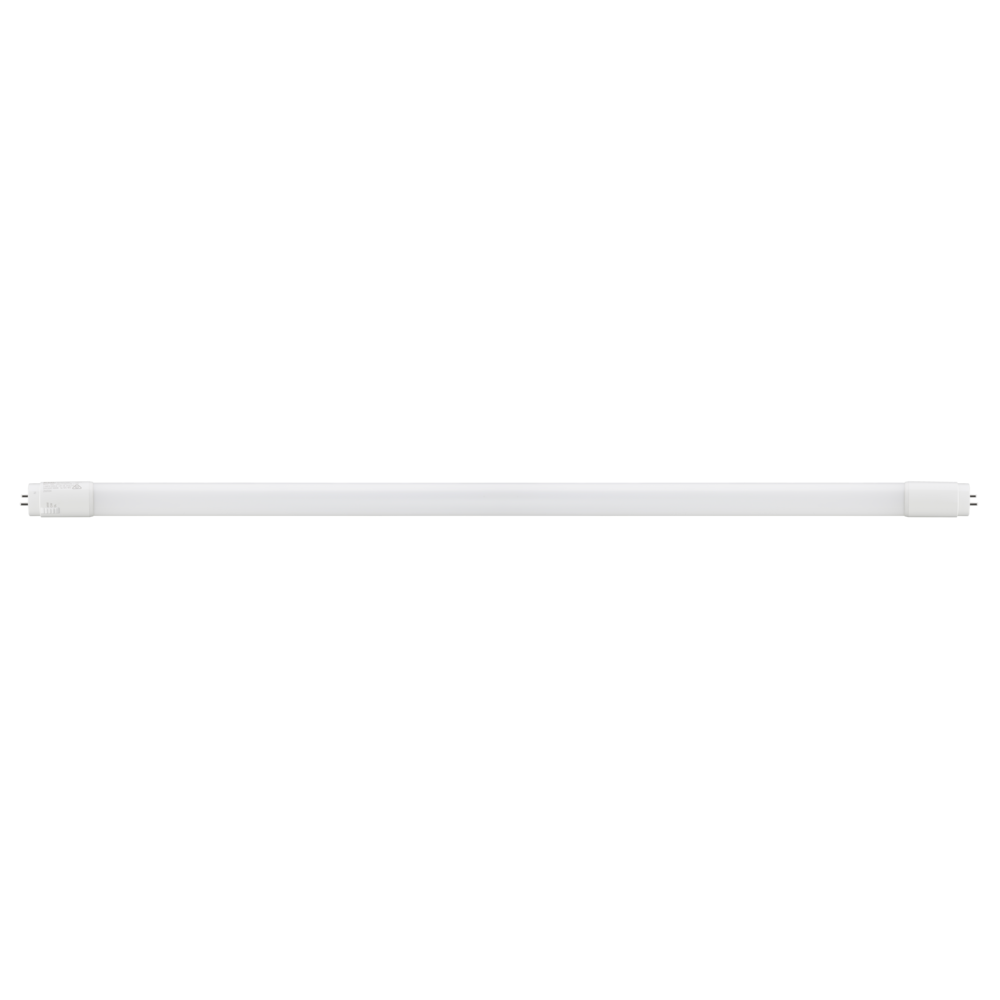

SAL LT8 LED Tube Tri Colour - 9/24W

LT8 60TC

SAL Lighting

Features

LED shatter-proof tube, G13 base

Application
Energy-efficient LED lamp solutions

Design Specifications

Fits new T8 LED fixtures or retrofit T8 fluorescent fixtures (Magnetic Ballast)
Traditional full glass shatter-proof poly-coated body construction, G13 lamp base
High-efficiency SMD LED chips, CRI >80, beam 320°
Integral non-dimmable LED driver, 9, 18 or 24-watt models
Colour temperature selectable 3000K / 4000K / 6000K
No flicker, instant start, Safety LED fuse included, double insulation

Code	Cat#	Input Voltage (V/AC)	Power (W)	Lumens (lm)	CCT (K)	CRI	Beam Angle	Dimmable	Size (mm)	Base Type
LT8-60TC	LT8/60TC	240	9	900/1100/1000	3000/4000/6000	80	320 deg	NO	28mm dia, 589mm L	G13
LT8-120TC	LT8/120TC	240	9	1800/2200/2000	3000/4000/6000	80	320 deg	NO	28mm dia, 1198mm L	G13
LT8-150TC	LT8/150TC	240	9	2300/2500/2400	3000/4000/6000	80	320 deg	NO	28mm dia, 1500mm L	G13

(No drawing available)

led-tube-lt8-tc-lt8-tc.pdf 225 KB

LT8-TC-installation.pdf 913 KB
