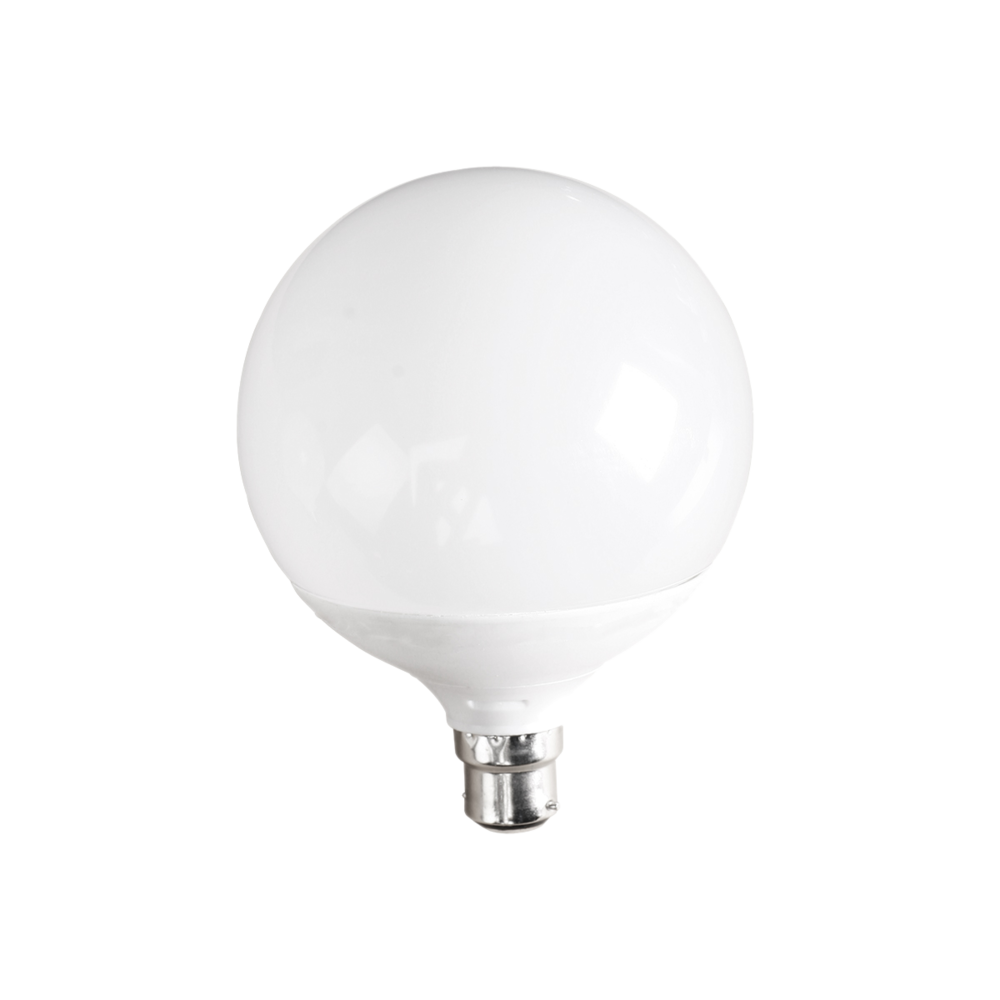

SAL LG95 Opal Spherical Dim - 10W
LG95 830B22
SAL Lighting
Features

10 watt dimmable LED SMD opal spherical lamp

Application
Energy-efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser
  • Poly covered aluminium body, B22 or E27 lamp bases
  • High-efficiency SMD LED chips, beam 240 degree
  • Integral trailing edge dimmable LED driver
  • Colour temperature 3000K / 6000K, CRI >80
  • 1:1 size to traditional spherical lamp, dimmable, suits most spherical lamp fittings, double insulation

Performance
Dimmable - YES
Dimmer Type - Trailing edge

SAL Logo 01
Code Cat# Input Voltage (V/AC) Power (W) Lumens (lm) CCT (K) CRI Beam Angle Dimmable Size (mm) Base Type
LG95-830B22 LG95/830B22 240 10 900 3000 80 240 deg YES 95mm dia, 135mm L B22
LG95-830E27 LG95/830E27 240 10 900 3000 80 240 deg YES 95mm dia, 135mm L E27
LG95-860B22 LG95/830B22 240 10 950 6000 80 240 deg YES 95mm dia, 135mm L B22
LG95-860E27 LG95/860E27 240 10 950 6000 80 240 deg YES 95mm dia, 135mm L E27
(No drawing available)
