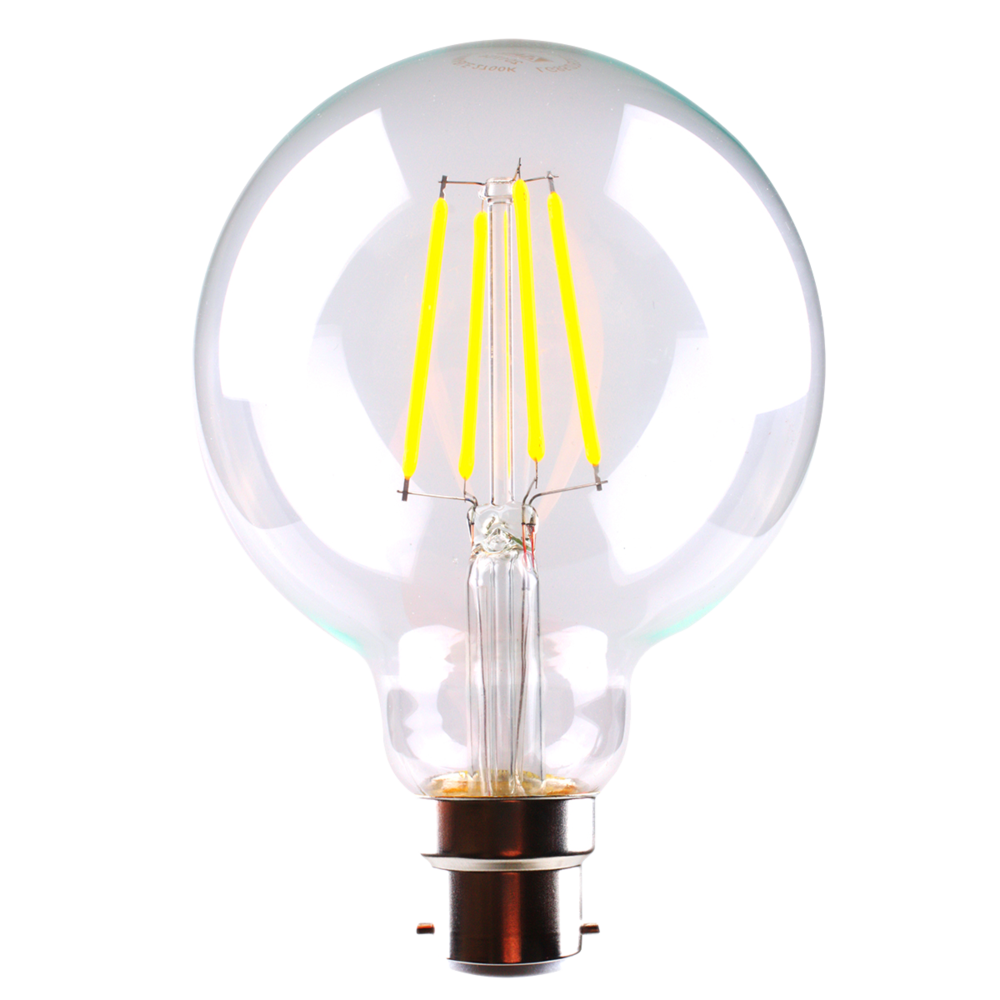

SAL LG95 Clear Spherical - 6W
LG95 27B22D C
SAL Lighting
Features

6 watt dimmable LED filament clear spherical lamp

Application
Energy-efficient LED lamp solutions, B22 or E27 bases

Design Specifications

  • Clear glass diffuser, B22 or E27 bases
  • High efficiency LED filament and colour rendering, >80
  • Integral trailing edge dimmable LED driver
  • 320° beam angle
  • Colour temperature 2700K / 5000K
  • 1:1 size to traditional spherical lamp, dimmable, suits most spherical lamp fittings, double insulation

Performance
Dimmable - YES
Dimmer Type - Trailing edge

SAL Logo 01
Code Cat# Input Voltage (V/AC) Power (W) Lumens (lm) CCT (K) CRI Beam Angle Dimmable Size (mm) Base Type
LG95-27B22D-C LG95/27B22D/C 240 6 750 2700 80 320 deg YES 95mm dia, 138mm L B22
LG95-27E27D-C LG95/27E27D/C 240 6 750 2700 80 320 deg YES 95mm dia, 140mm L E27
LG95-50B22D-C LG95/50B22D/C 240 6 800 5000 80 320 deg YES 95mm dia, 138mm L B22
LG95-50E27D-C LG95/50E27D/C 240 6 800 5000 80 320 deg YES 95mm dia, 140mm L E27
(No drawing available)
