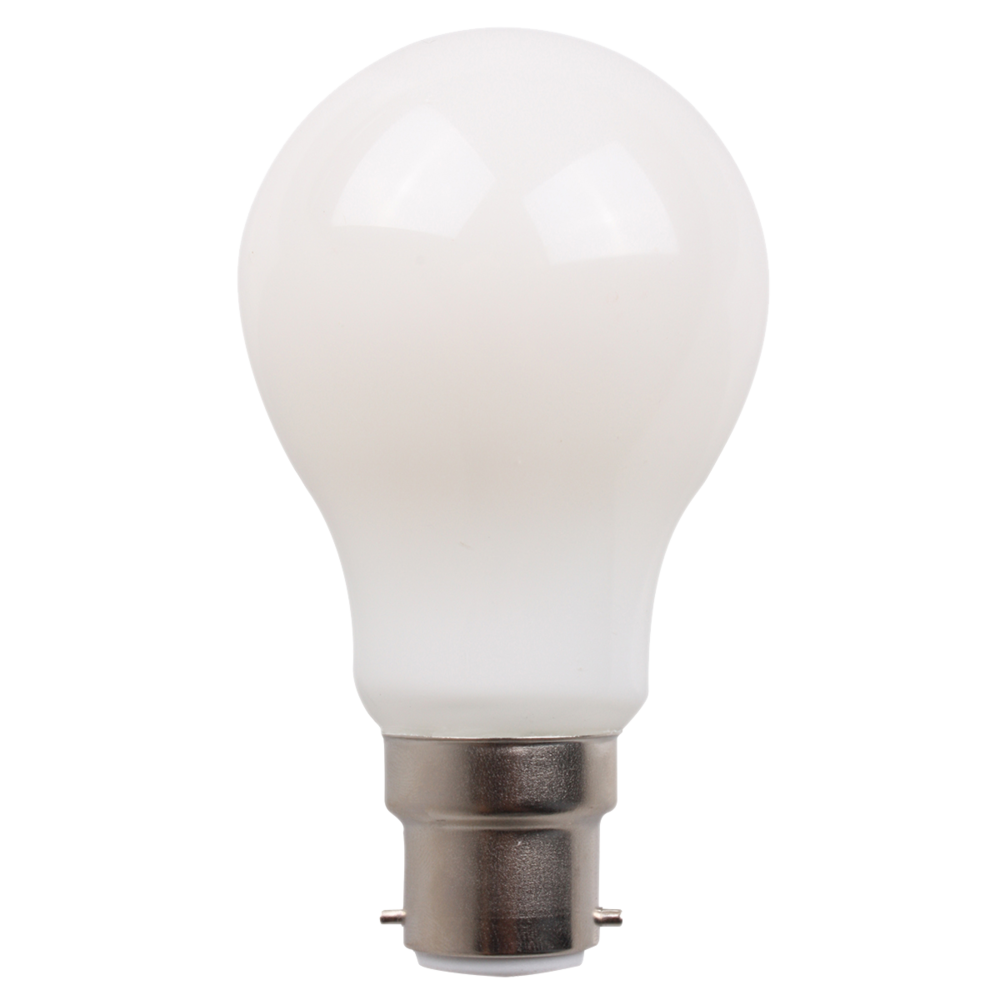

SAL LG9 Opal Dim - 8W
LG9 50B22D
SAL Lighting
Features

8 watt dimmable LED filament GLS style lamps

Application
Energy-efficient LED lamp solutions, 8-watt models

Design Specifications

  • Opal polycarbonate diffuser, BC or E27 lamp bases
  • High efficiency LED filament and colour rendering CRI > 80
  • Integral trailing edge dimmable LED driver
  • 320° beam angle
  • Colour temperature 2700K / 5000K
  • 1:1 size to traditional GLS lamp base and shape, dimmable and suits most luminaires, double insulation

Performance
Dimmable - YES
Dimmer Type - Trailing edge

SAL Logo 01
Code Cat# Input Voltage (V/AC) Power (W) Lumens (lm) CCT (K) CRI Beam Angle Dimmable Size (mm) Base Type
LG9-27B22D LG9/27B22D 240 8 900 2700 80 320 YES 60mm dia, 105(L) B22
LG9-27E27D LG9/27E27D 240 8 900 2700 80 320 YES 60mm dia, 106(L) E27
LG9-50B22D LG9/50B22D 240 8 950 5000 80 320 YES 60mm dia, 105(L) B22
LG9-50E27D LG9/50E27D 240 8 950 5000 80 320 YES 60mm dia, 106(L) E27
(No drawing available)
