SAL LG9 Clear Dim - 8W
LG9 27E27D C
SAL Lighting
Features

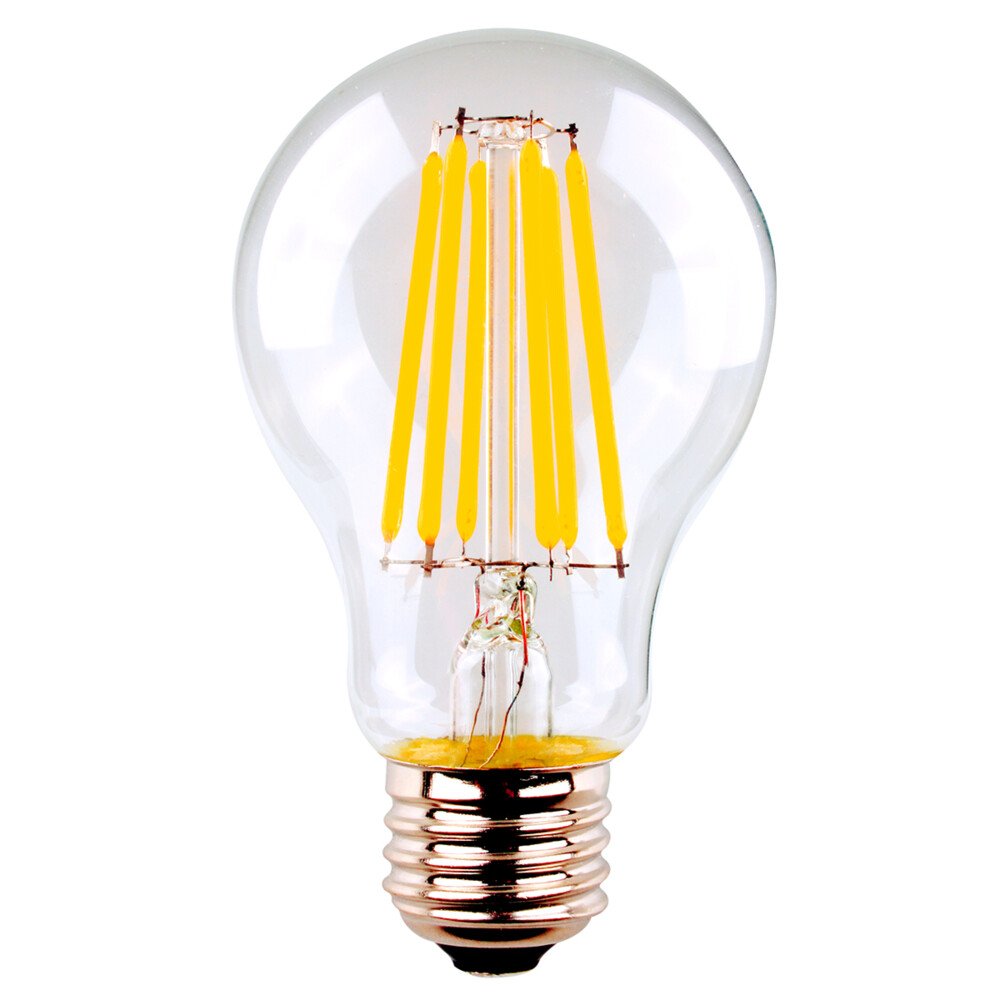

8 watt dimmable LED filament GLS style lamps

Application
Energy-efficient LED lamp solutions, 8-watt models

Design Specifications

  • Clear glass diffuser, ES or BC base
  • High efficiency LED filament and colour rendering
  • Integral trailing edge dimmable LED driver
  • 320° beam angle
  • Colour temperature 2700K / 5000K
  • 1:1 size to traditional GLS lamp, dimmable, suits most GLS lamp fittings, double insulation

Performance
Dimmable - YES
Dimmer Type - Trailing edge

SAL Logo 01
Code Cat# Input Voltage (V/AC) Power (W) Lumens (lm) CCT (K) CRI Beam Angle Dimmable Size (mm) Base Type
LG9-27B22D-C LG9/27B22D/C 240 8 950 2700 80 320 YES 60mm dia, 105(L) B22
LG9-27E27D-C LG9/27E27D/C 240 8 950 2700 80 320 YES 60mm dia, 105(L) E27
LG9-50B22D-C LG9/5027B22D/C 240 8 1000 5000 80 320 YES 60mm dia, 105(L) B22
LG9-50E27D-C LG9/50E27D/C 240 8 1000 5000 80 320 YES 60mm dia, 105(L) E27
(No drawing available)
