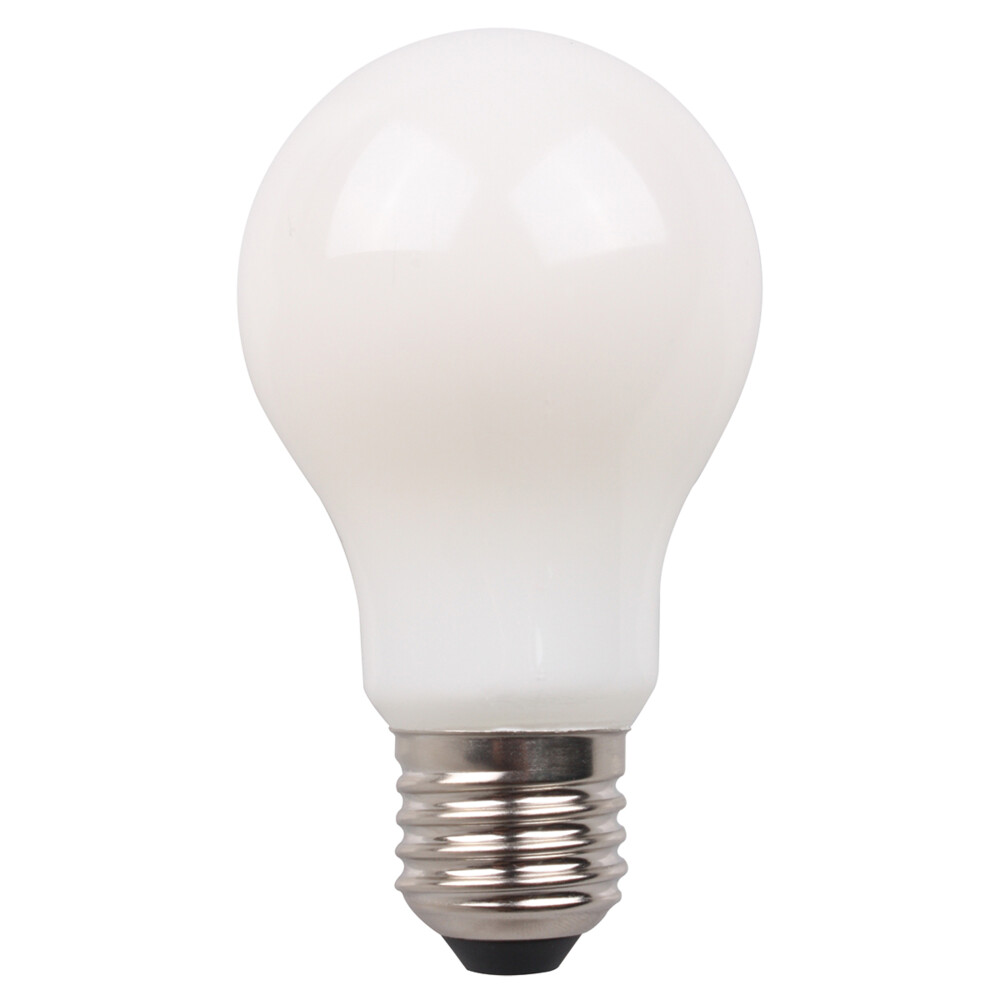

SAL LG5 Opal Dim - 4W
LG5 27E27D
SAL Lighting
Features

4 watt dimmable LED filament GLS style lamps

Application
Energy-efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser, ES or BC base
  • High efficiency LED filament and colour rendering CRI > 80
  • Integral trailing edge dimmable LED driver
  • 320° beam angle
  • Colour temperature 2700K / 5000K
  • 1:1 size to traditional GLS lamp, dimmable, suits most GLS lamp fittings, double insulation

Performance
Dimmable - YES
Dimmer Type - Trailing edge

SAL Logo 01
Code Cat# Input Voltage (V/AC) Power (W) Lumens (lm) CCT (K) CRI Beam Angle Dimmable Size (mm) Base Type
LG5-27B22D LG5/27B22D 240 4 450 2700 80 320 YES 60mm dia, 105(L) B22
LG5-27E27D LG5/27E27D 240 4 450 2700 80 320 YES 60mm dia, 106(L) E27
LG5-50B22D LG5/50B22D 240 4 500 5000 80 320 YES 60mm dia, 105(L) B22
LG5-50E27D LG5/50E27D 240 4 500 5000 80 320 YES 60mm dia, 106(L) E27
(No drawing available)
