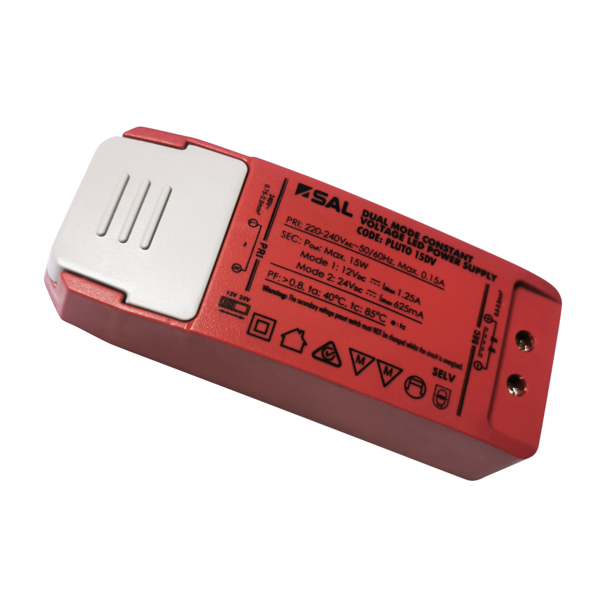

SAL PLUTO LED Driver 15W
pluto 15dv
Features

Dual power approved constant voltage LED driver

Application
Versatile and compact dual voltage range with captive terminal screws, ideal for low wattage retrofit and maintenance lighting requirements

Design Specifications

  • SELV and EMC compliant
  • Safe no-load operation, non-dimmable
  • Overload and short circuit protection
  • Hard wired termination design
  • 15 watt capacity with selectable 12V or 24V secondary output
  • Dimensions: (LWH) 98 x 39 x 23mm
SAL Logo 01
Code Cat# Description Input Voltage (V/AC) Output Voltage (V/DC) Power (W) Power Factor Dim (mm)
PLUTO15DV PLUTO 15DV LED DRIVER 12/24V 15W C-VOLTAGE 240 12-24 15 0.8 99(L) x 39(W) x 23(H)
(No drawing available)
