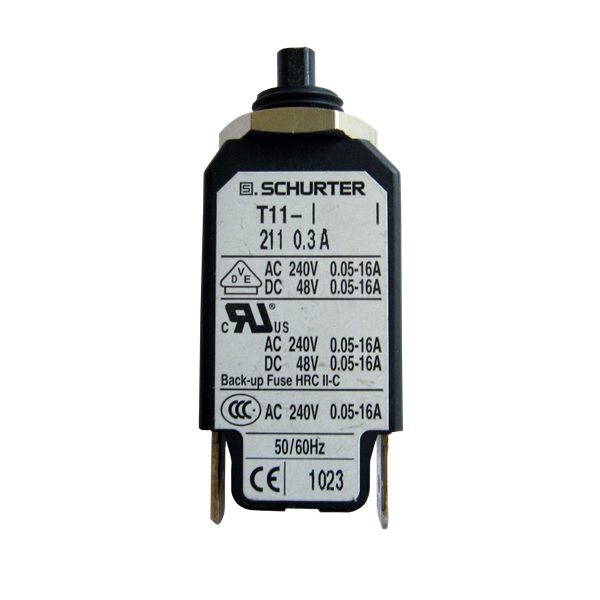

T11 Thermal Circuit Breaker, Single Pole
T11 Circuit Breaker.jpg
View item in Hamer catalogue: Control on page 47
Features
  • The T11 series of circuit breakers for equipment is a line of small, single pole push to reset, overload protective devices.
  • The trip mechanism is of the superior “latch type”.
  • A high contact force can be maintained until the unit trips.
  • This prevents electrical noise due to contact bounce and reduces the risk of contact welding which may occur with spring type mechanism.
  • The overload sensing is done with the aid of a thermal bimetal which has the advantage of being immune to high inrush currents and line transients.
  • All T11 units are positively trip-free.
  • The T11 is specifically designed to protect equipment, wiring, transformers, power supplies, motors and sub-assemblies, such as printed circuit boards.
  • For non-PCB mounting the T11 is connected to wiring with the popular quick connect terminals.
  • Rated currents can be specified from 0,05A to 16A.
  • All models are internationally approved.
Code Cat# Model Number Rating (Amps) Notes
WB2080 4400.0069 T11 211 0.4 0.4 Indent Item - MoQ 100 Units
WB2100 4400.0059 T11 211 0.5 0.5 Indent Item - MoQ 100 Units
WB2120 4400.0131 T11 211 0.6 0.6 Indent Item - MoQ 100 Units
WB2140 4400.0084 T11 211 0.7 0.7 Indent Item - MoQ 100 Units
WB2160 4400.0042 T11 211 0.8 0.8 Indent Item - MoQ 100 Units
WB2180 4400.0008 T11 211 1.0 1.0 Indent Item - MoQ 100 Units
WB2200 4400.0055 T11 211 1.2 1.2 Indent Item - MoQ 100 Units
WB2220 4400.0056 T11 211 1.5 1.5 Indent Item - MoQ 100 Units
WB2400 4400.0047 T11 211 2.0 2.0 Indent Item - MoQ 100 Units
WB2440 4400.0009 T11 211 2.5 2.5 Indent Item - MoQ 100 Units
WB2460 4400.0102 T11 211 2.8 2.8 Indent Item - MoQ 100 Units
WB2500 4400.0010 T11 211 3.0 3.0 -
WB2540 4400.0001 T11 211 4.0 4.0 -
WB2550 4400.0041 T11 211 4.5 4.5 Indent Item - MoQ 100 Units
WB2560 4400.0006 T11 211 5.0 5.0 -
WB2580 4400.0050 T11 211 6.0 6.0 Indent Item - MoQ 100 Units
WB2600 4400.0271 T11 211 6.5 6.5 Indent Item - MoQ 100 Units
WB2620 4400.0014 T11 211 7.0 7.0 Indent Item - MoQ 100 Units
WB2630 4400.0232 T11 211 7.5 7.5 -
WB2640 4400.0015 T11 211 8.0 8.0 -
WB2280 4400.0129 T11 211 10.235 10.235 -
WB2300 4400.0052 T11 211 12.0 12 -
WB2320 4400.0100 T11 211 13.0 13 Indent Item - MoQ 100 Units
WB2340 4400.0101 T11 211 14.0 14 Indent Item - MoQ 100 Units
WB2360 4400.0065 T11 211 15.0 15 -
WB2380 4400.0017 T11 211 16.0 16 -
(No drawing available)
