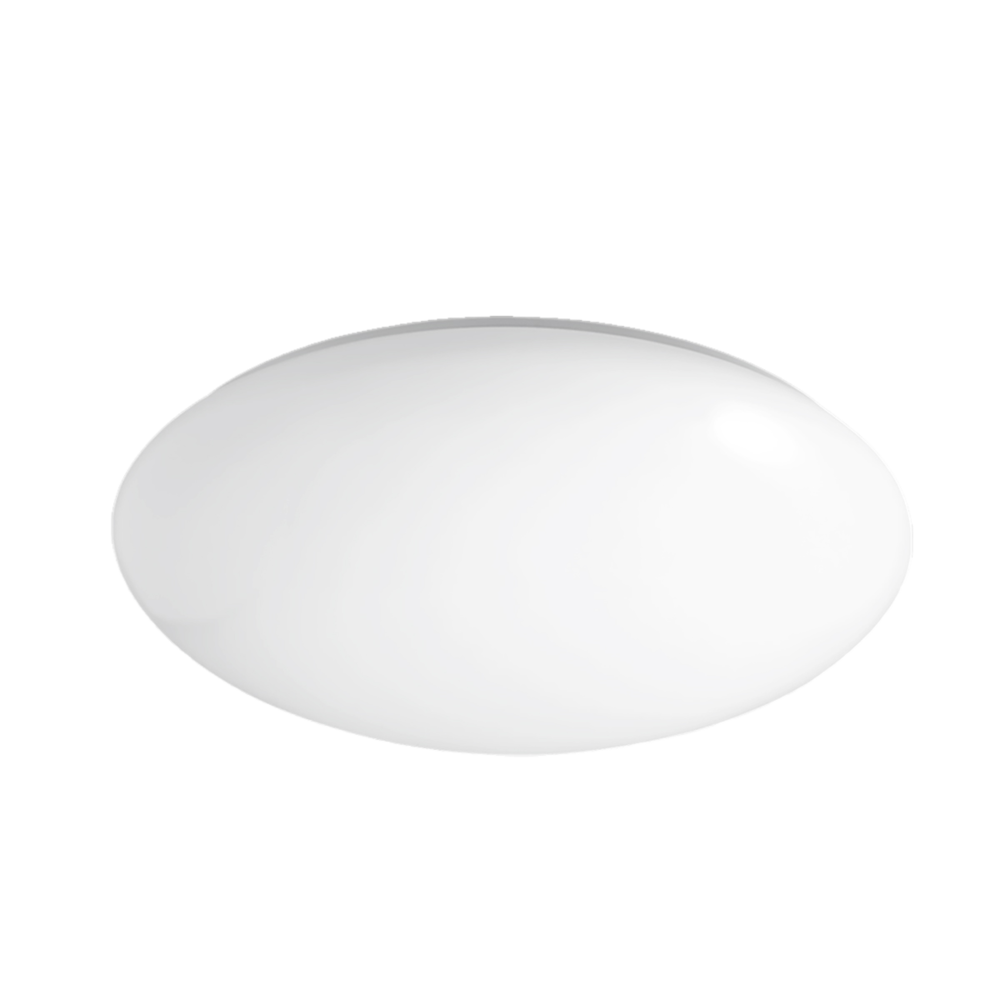

SAL OPAL Oyster 8/30W LED
so3700
Features

LED Oyster 8 to 30W with selectable colour temperature and dual power

Application
A perfect choice for apartments or commercial spaces

Design Specifications

  • Select colour temperature with DIP switch 3000K / 4000K / 6000K
  • Durable powder-coated steel body profile with a high-performance opal PMMA diffuser
  • High-efficiency SMD LED chips, CRI > 80
  • Integral constant current non-dimmable LED driver
  • Integral dual power selection for DP models
  • Two versatile profile sizes 8/16 or 15/30 watt, Microwave sensor optional to order.

Performance
Dimmable - OPTIONAL
Dimmer Type - Trailing edge, 1-10V, DALI / DSI
In-Built Sensor - OPTIONAL

SAL Logo 01
Code Cat# Description Input Voltage (V/AC) Multiple Wattage Lumens (lm) CCT (K) Beam Angle CRI Dim (mm)
SO3700-30TC-DP SO3700/30/TC/DP LED OYSTER 8/16W 310mm 3/4/6K 240 8/16 1200/1360/1280 3000/4000/6000 120 deg 80 310(W) x 100(H)
SO3700-40TC-DP SO3700/40/TC/DP LED OYSTER 15/30W 390mm 3/4/6K 240 15/30 2250/2550/2400 3000/4000/6000 120 deg 80 390(W) x 112(H)
(No drawing available)
