Teaflex ECO Nylon Tube Clamp

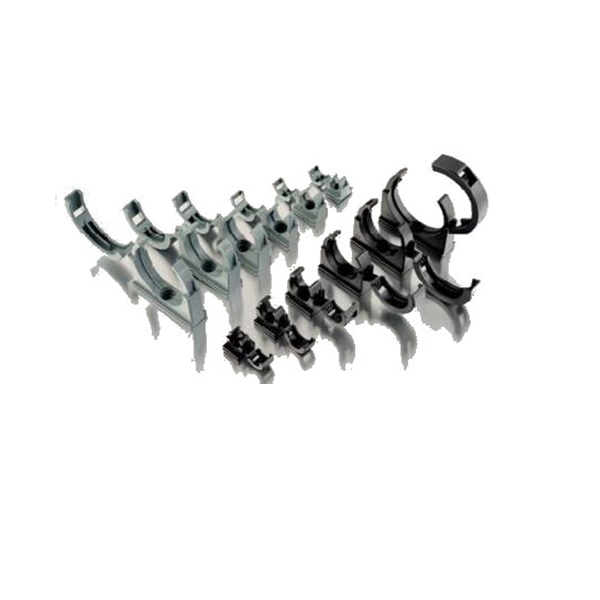

Teaflex BSC tube clamps.jpg
View item in Hamer catalogue: Cable Care on page 54
Features
  • SC Tube clamps made by Teaflex are manufactured from high-grade, specially formulated polyamides.
  • These polyamides are self-extinguishing, free of halogen, phosphor and cadmium.
  • Extremely shock and chemicals agents resistant.
  • ECO nylon one-piece tube clamp with integrated safety clip.
  • Quick mounting.
  • Especially suitable for reverse overhead installations.
  • High grade of strain relief and retaining forces due to integrated rib in both parts, the body and the safety clip.
  • Fits both profile conduits C (Coarse) / F (Fine).
  • Fits to support rail SR.
  • The safety clip can be easily reopened with a screwdriver.
  • Temperature rating: -40°C to 105°C - [Short term: 150ºC].
  • Suitable for industrial and electro technical installation applications as well as for increased requirements in heavy industry and railway applications.
Code Cat# Nominal Size Base measurement (WxL) Colour Notes
FL4110 BSC07 10 20mm x 17mm Black Indent Item
FL4113 BSC10 12 20mm x 21mm Black Indent Item
FL4116 BSC12 16 20mm x 24mm Black -
FL4121 BSC17 20 20mm x 30mm Black -
FL4128 BSC23 25 20mm x 38mm Black Indent Item
FL4134 BSC29 32 20mm x 45mm Black Indent Item
(No drawing available)
