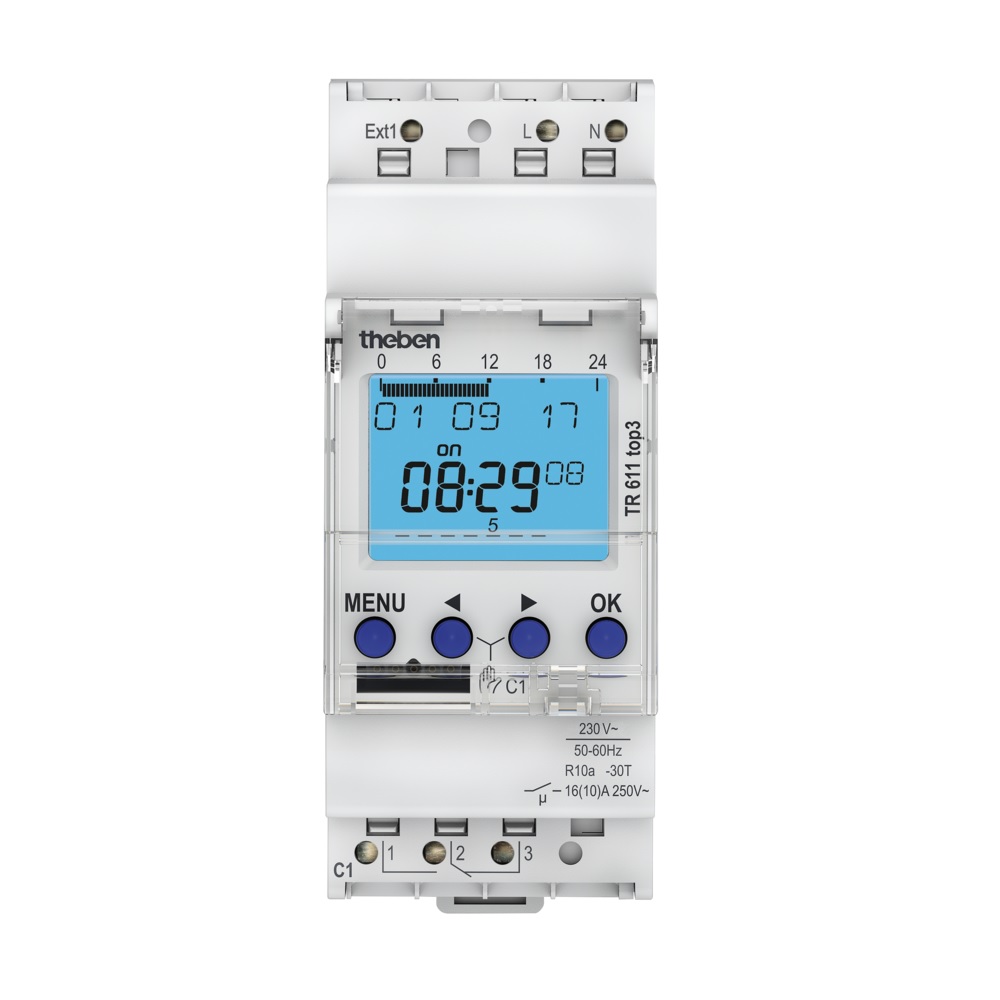

Theben TR611top3 Weekly Digital Timer with Pulse + Bluetooth & Reserve
6110131
Features
  • Digital time switch with weekly time switch program - direct replacement for 6110103 TR611top2.
  • 1 channel.
  • Programming by app possible.
  • Safe transfer via optional Bluetooth Low Energy OBELISK top3 dongle (Android/ Apple platforms).
  • Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 dongle is plugged into the time switch.
  • 100% compatible with top2.
  • DIN mount, 2 module width.
  • DuoFix spring terminals for 2 conductors each; Wire or strand (with or without wire end sleeve), Wire diameter: 0.
  • 5 - 2.5 mm².
  • Button for releasing plug-in connection.
  • Text-oriented user guidance in display.
  • Preset date and time.
  • Fully operable without mains connection.
  • 84 memory locations.
  • Interface for OBELISK top2 memory card (PC programming) with two insertable switching programs, copying programs and storing programs.
  • 10 year power reserve (lithium battery).
  • Zero-cross switching for relay-saving switching and high LED lamp loads (not with 24 V devices).
  • ON-OFF switching times.
  • Pulse program.
  • Cycle program.
  • Switching preselection.
  • Permanent switching ON/OFF.
  • Timer countdown.
  • Integrated operating hour counter.
  • Reset option.
  • Service function for monitoring maintenance intervals.
  • Holiday program.
  • 2 random programs.
  • Display backlight (can be turned off).
  • PIN coding for security.
  • Automatic summer/winter time changeover (can be deactivated).
  • Date rule options are already stored for Europe, the USA and other countries.
  • own date rule options or changeover around set dates are available.
  • Incandescent/halogen lamp load 230 V 2600 W.
  • Energy saving lamps 230 V 1100 W.
  • LED lamp < 2 W = 50 W.
  • LED lamp > 2 W = 600 W.
  • Incandescent lamp load 2600 W.
  • Halogen lamp load 2600 W.
  • Fluorescent lamp load (conventional) not corrected 2600 VA.
  • Fluorescent lamp load (conventional) series-corrected 2600 VA.
  • Fluorescent lamp load (conventional) parallel-corrected 1300 VA 130 µF.
  • Compact Fluorescent lamps (EVG) 1100 W.
  • Switching capacity min, ca, 10 mA.
  • Shortest switching times 1 sec.
  • Time accuracy at 25 °C typical ± 0,25 s/day (quartz).
  • Time basis Quartz.
  • Stand-by consumption ~0,4 W.
  • Free software available from https://www.theben.de/en/tr-611-top3-6110130.
Code Cat# Supply Voltage Current: Resistive/Inductive LED Load Number of Channels Battery Reserve Memory Locations Shortest Switching Time Features
6110130 6110130 230VAC 16A / 10A <2W = 50W / >2W = 600W 1 Y 84 1 sec Top3 Bluetooth Interface, Pulse, Integrated operating hour counter and Holiday Program

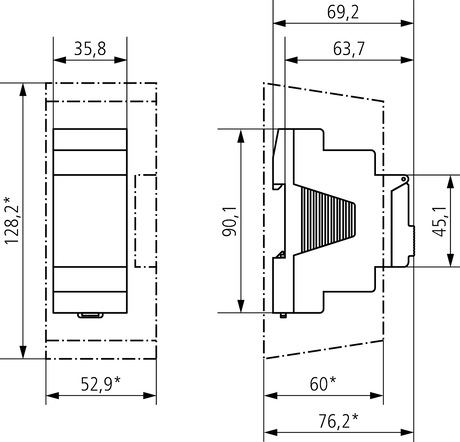

TD 6110130 TR611top3 technical drawing2
