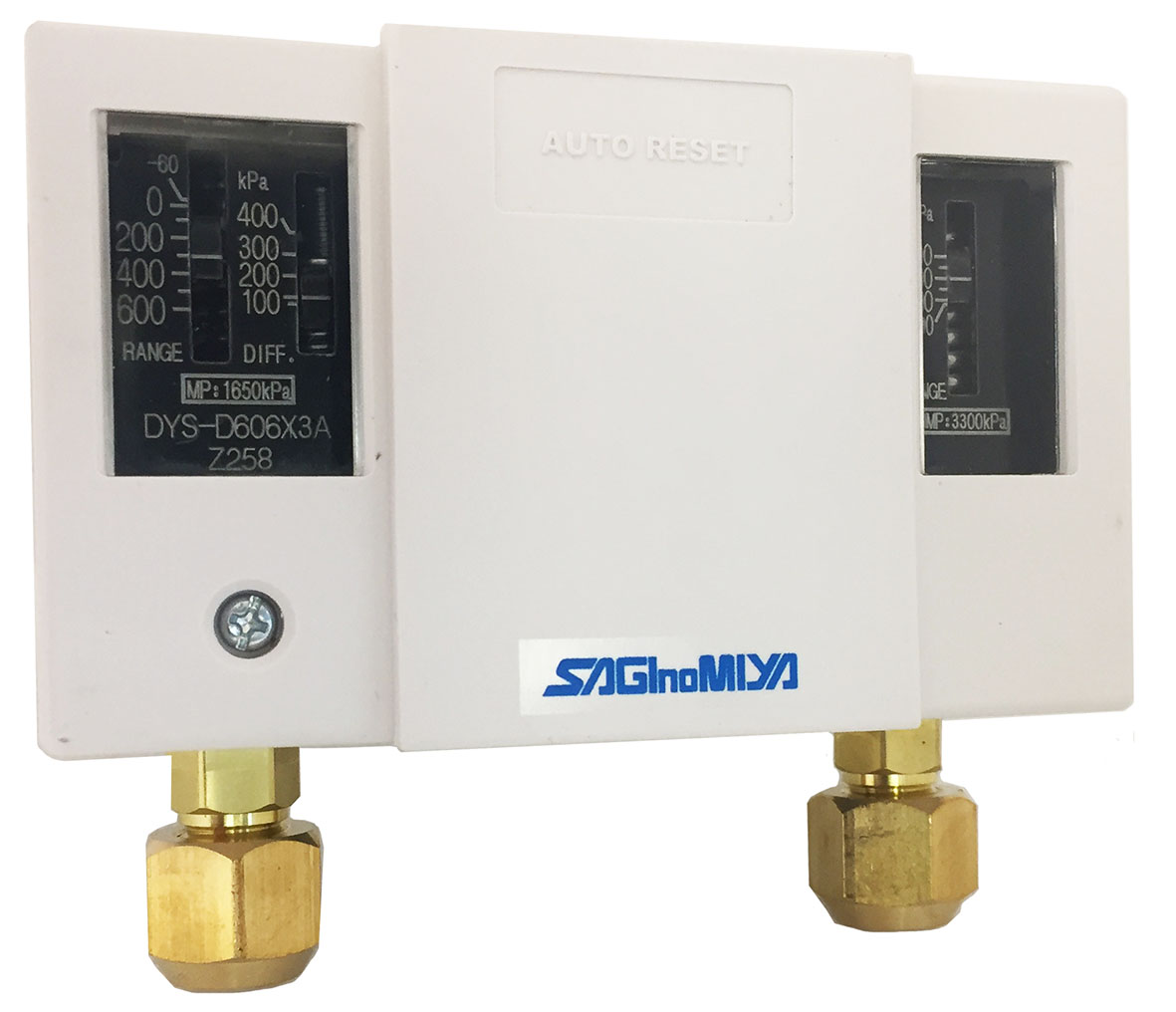

Saginomiya DYS-D606X3A Dual Pressure Switch Control -60 to 600KPa Low, 800 to 3000KPa High, Auto Reset
SG141
Features
  • Dual pressure switch control with automatic reset and adjustable differential on low side.
  • For use with fluorinated refrigerants as well as with air and water.
  • Allowable fluid temp: -20°C - 120°C.
  • Flare nut 1/4” 7/16-20 UNF thread.
  • Supplied with mounting bracket.



Electrical Ratings Power Factor (COSФ)

  • Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45

Electrical Ratings 125/250V AC

  • Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72
Code Cat# Type Pressure Range Low Side Differential Range Low Side Pressure Range High Side Differential (Fixed) High Side Special Features
SG141 DYS-D606X3A Dual Pressure Control Switch -60 to 600KPa (-8.7 to 87 PSI) 60-400KPa (8.7 to 58 PSI) 800 to 3000KPa (116 to 435.1 PSI) Approx. 500KPa (72 PSI) Independent Contacts on High and Low
(No drawing available)
