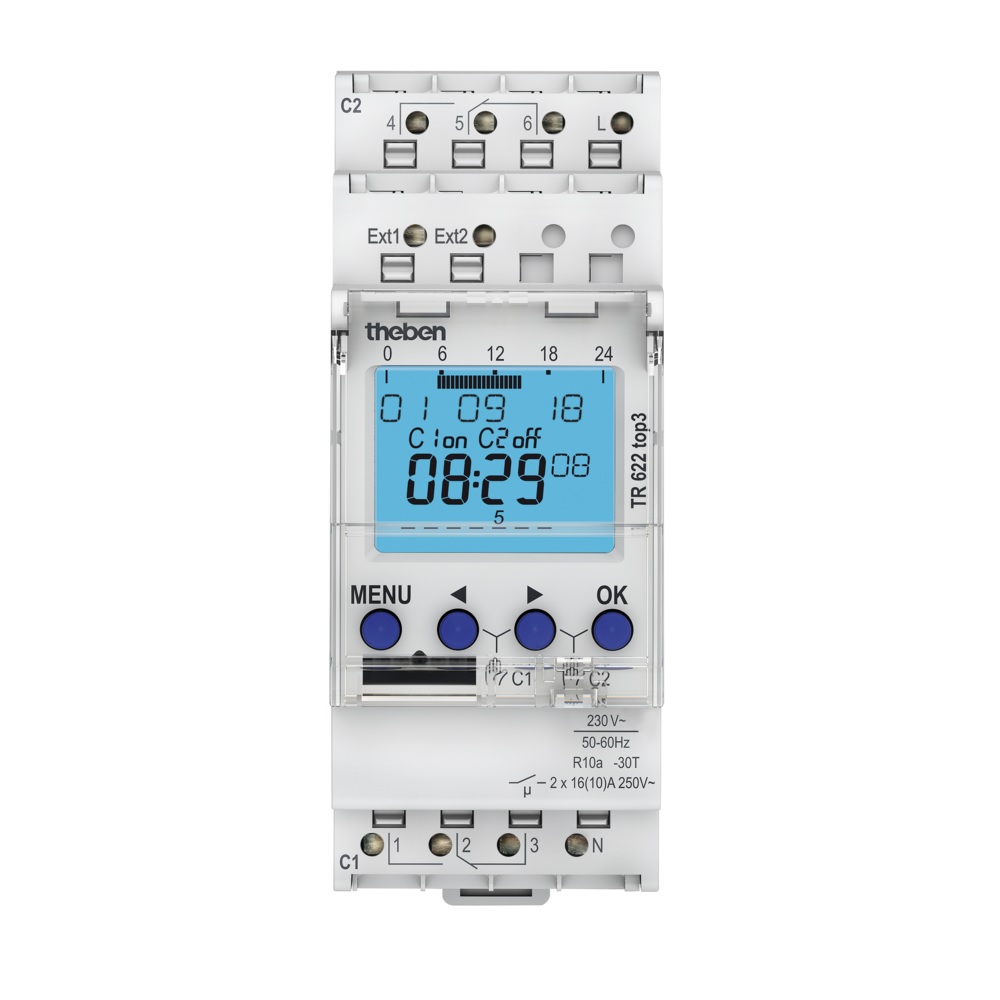

Theben TR622top3 7Day Digi.Timer BT Pulse 84Mem 2ch 16A 230V
6220130
Theben
Features



  • Digital time switch with weekly time switch program - Same as 6110130 TR611top3 except has 2 channel and alternating weekly switch off of channel 1 and 2 features.
  • DuoFix spring terminals.
  • For 2 conductors each.
  • Wire or strand (with or without wire-end sleeve).
  • Wire diameter: 0.5 - 2.5 mm².
  • Programmable via app. (requires Bluetooth Low Energy OBELISK top3 dongle).
  • Safe transfer via optional Bluetooth Low Energy OBELISK top3 dongle (Android/ Apple platforms).
  • Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 dongle is plugged into the time switch.
  • Button for releasing plug-in connection.
  • Text-oriented user guidance in display.
  • Preset date and time.
  • Fully operable without mains connection.
  • 84 memory settings.
  • Free software available from https://www.theben.de/en/tr-622-top3-6220130



Code Cat# Supply Voltage Current: Resistive/Inductive LED Load Number of Channels Battery Reserve Memory Locations Shortest Switching Time Features
6220130 6220130 230V AC 16A / 10A <2W = 50W / >2W = 600W 2 Y 84 1 sec Top3 Bluetooth Interface, 2 external inputs, Alternating weekly switching of channels, Pulse, Integrated operating hour counter and Holiday Program

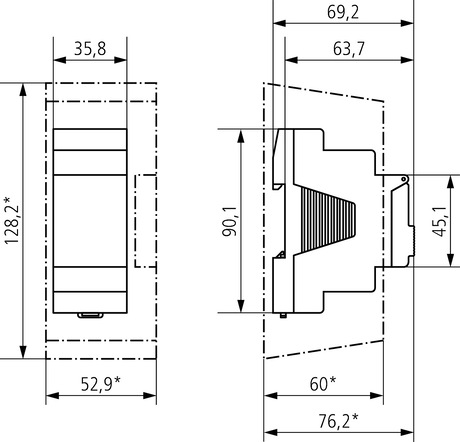

TD 6220130 TR 622 top3 technical drawing
