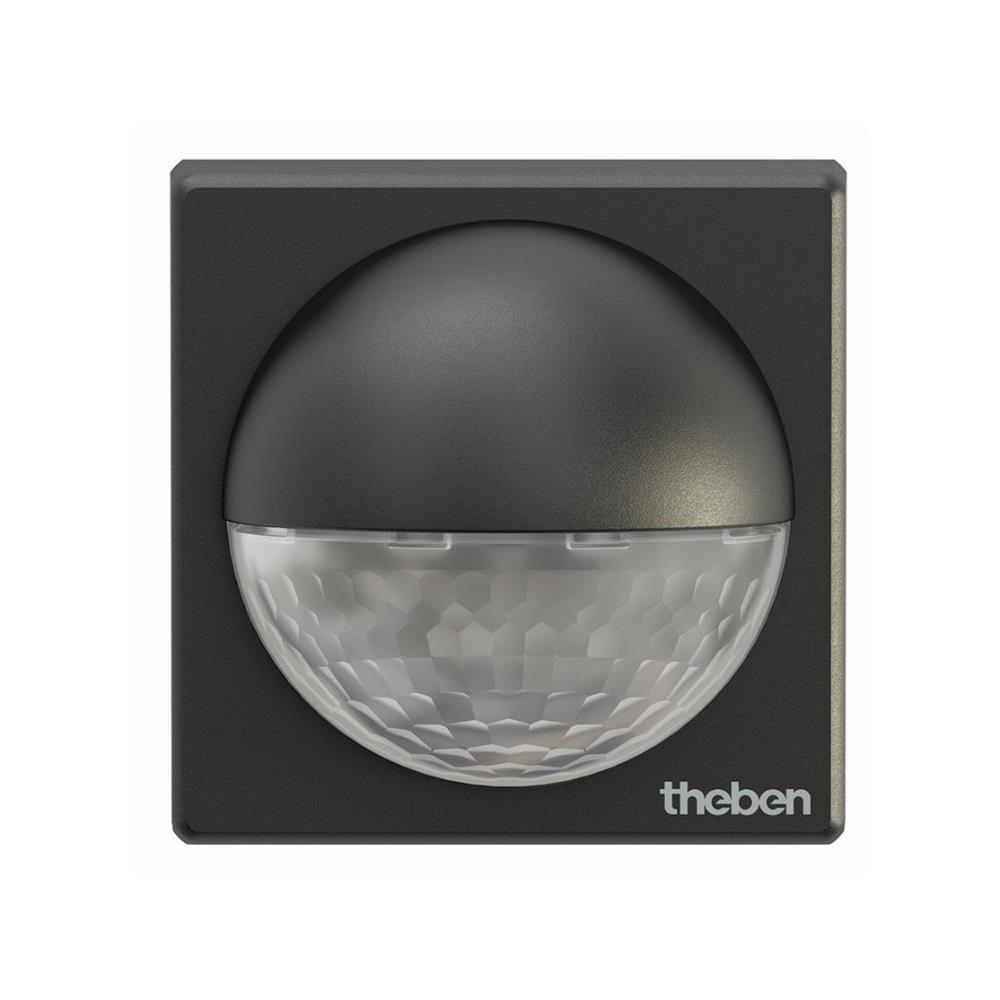

Theben theLuxa R180 BK PIR Sensor 180deg Black Wall Mt IP55
1010201
View item in Hamer catalogue: Timers & Sensors on page 46
Features
  • Black Motion detector (PIR) 180° detection angle for outdoor use, IP55.
  • Protection from tampering thanks to the robust case design.
  • Automatic lighting control based on presence and brightness.
  • Covered operating controls under the secured front cover.
  • Adjustable brightness switching value 2 – 200 lx and switch-off delay 2 s-30 min.
  • Area limit via lens attachment.
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps, energy saving lamps and LEDs.
  • Zero-cross switching for relay-saving switching and high lamp loads.
  • Test function for checking detection area.
  • Installation on flush-mounted socket possible (60mm).
  • Single-handed plug-in installation.
  • Instant start-up possible via factory preset.
  • Terminal for protective earth conductor.
  • Detection; Head-On 5mt, Diagonally 12mt.
  • Operating voltage 230V AC, 10Amp 50/60Hz.
  • Stand-by consumption <0,5 W.
  • Installation height 2,5 to 4mt.
  • Incandescent lamp load 2300 W.
  • Fluorescent lamp load (conventional) not corrected 500 VA.
  • Fluorescent lamp load (conventional) parallel-corrected 500 W 60 µF.
  • Fluorescent lamp load (conventional) series-corrected 500 VA.
  • Fluorescent lamp load (electronic ballast) 500 W.
  • Energy saving lamps 500 W.
  • LED lamp < 2 W 50 W.
  • LED lamp 2-8 W 500 W.
  • LED lamp > 8 W 500 W.
Theben
Code Cat# Type Detection Colour Features Outdoor use Installation Height Power High LED loads Notes
1010201 1010201 Motion Detector (PIR) 180° / Head-On 5mt / Diagonally 12mt Black 1ch, Tamperproof, Zero-cross switching IP55 2,5mt to 4mt 230V AC, 50/60Hz, 10A > 2 W up to 500 W Indent Item

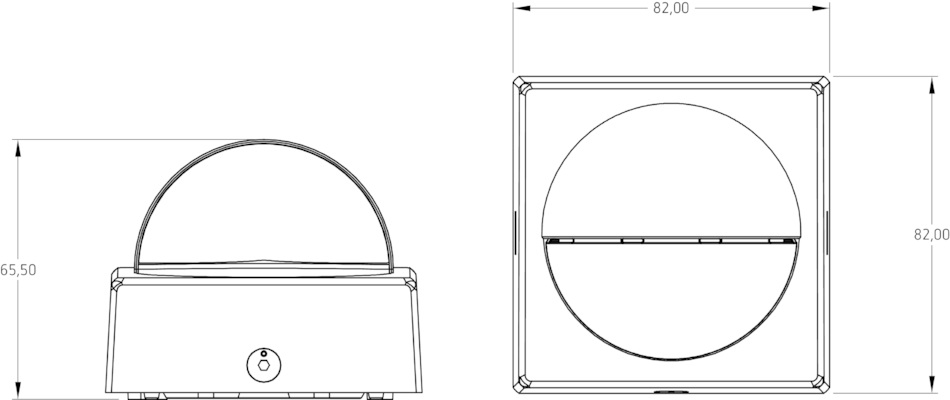

TD 1010201 theLuxa R180 BK technical drawing
