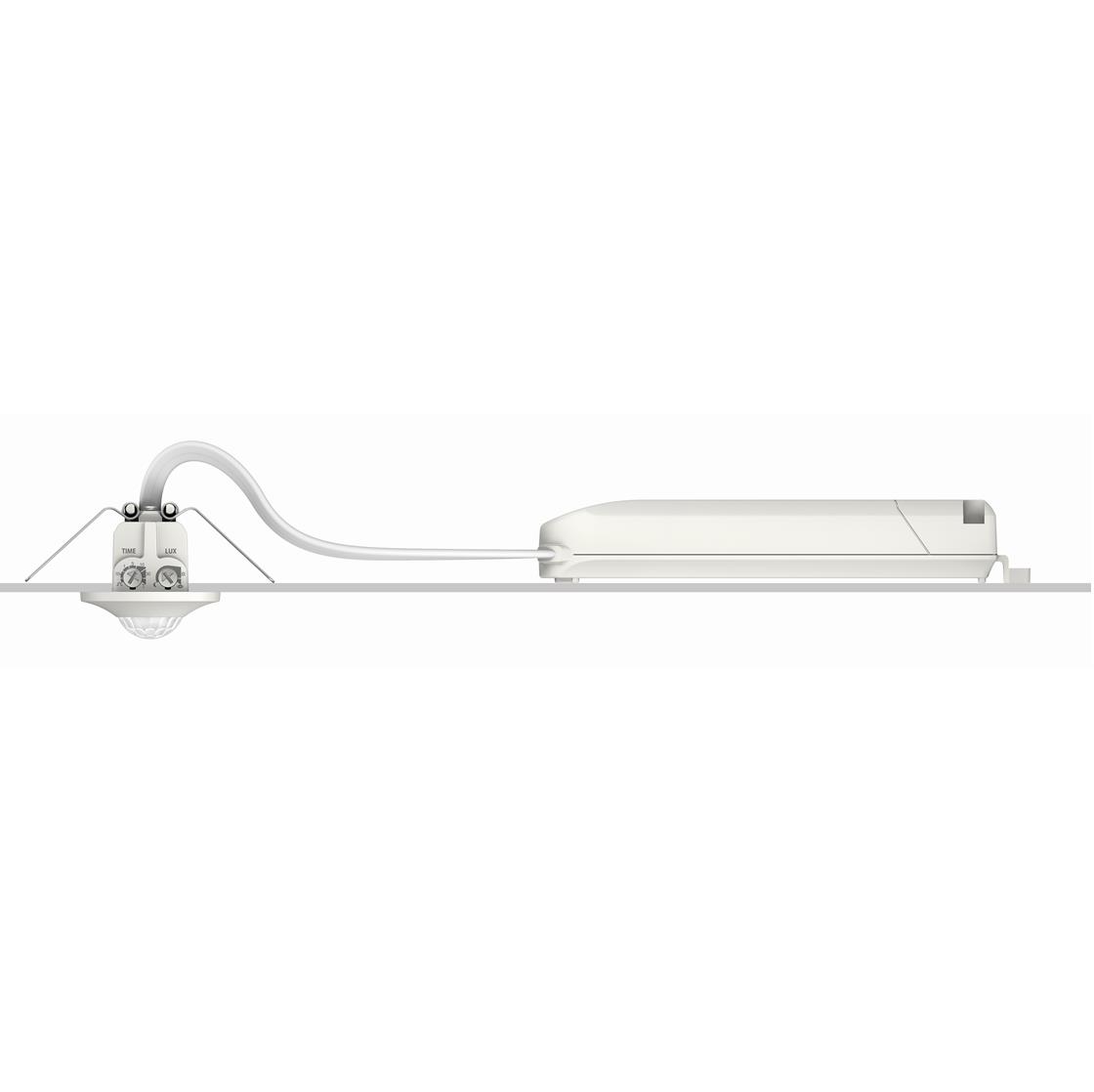

Theben thePiccola S360-100 DE WH Indoor Ceiling PIR sensor 44mmØ 360° WHITE
1060200
View item in Hamer catalogue: Timers & Sensors on page 54
Features
  • Passive infra-red motion detector for ceiling installation.
  • White.
  • Circular detection area 360°, up to Ø 8 m (50 m2).
  • Installation height 2 to 4 m.
  • Automatic motion and brightness-dependent control for lighting.
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
  • Channel A light - relay, 230V.
  • Operation as fully automatic device.
  • Brightness switching value configurable, 5 – 1000 lx, teach-in function.
  • Pulse function for staircase light time switch.
  • Time delay configurable 30 s - 30 min.
  • Extension of detection area via Master/Slave switching.
  • Test mode for checking function and detection area.
  • Diameter of ceiling cut-out 34–36 mm.
  • Ready for immediate use due to factory presetting.
  • IP 21 (Sensor), IP 20 (power module).
Theben
Code Cat# Type Detection Colour Features Indoor Use Installation Height Power Brightness Setting Range Notes
1060200 1060200 Motion Detector (PIR) 360° up to 8mt Ø White Teach-in and Pulse functions, 1Ch for Light IP21 (sensor) IP20 (power module) 2 to 4mt 110 - 240V AC, 50 - 60Hz 5 - 1000 Lux Indent Item
TD 1060200 thePiccola S360 100 DE WH technical drawing
