Theben theMova P360-100UPWH PIR Sensor 360deg 24mt White Ceiling 1Ch
1030600 theMova P360-100 UP WH.jpg
View item in Hamer catalogue: Timers & Sensors on page 56
Features
  • Passive-infrared motion detector for ceiling installation, White.
  • Automatic motion and brightness-dependent control for lighting.
  • Round 360° detection area up to 452 m2 (Ø 24 m).
  • Installation height 1,8 up to 10mt.
  • Area restriction with covering clips (optional).
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.
  • Operating voltage 110 - 230V AC / 50 - 60Hz.
  • Energy consumption approx 0,1 W.
  • Protection rating IP40 (when fitted).
  • Channel A light - relay 1 NO contact 230V / 10A, 2300W or 1150VA (cos ϕ = 0,5).
  • Fully automatic operation - configurable brightness switching value approx 30 – 3000 Lux.
  • Teach-in function.
  • Time delay 10 s – 60 min.
  • Pulse function for staircase light timer switch.
  • Configurable sensitivity - ready for operation immediately thanks to factory presetting.
  • Can be configured remotely with remote control.
  • Test mode to check function and detection area.
  • Installation depth 37 mm.
  • Ceiling installation in flush-mounted box size 1 or ceiling installation socket 73A (separate accessories).
  • Ceiling installation possible with back box 110 A.
Theben
Code Cat# Type Detection Colour Features Indoor Use Installation Height Power Notes
1030600 1030600 Motion Detector (PIR) 360° up to 24mt Ø White Teach-in and Pulse functions, 1Ch for Light IP40 (when fitted) 1,8 to 10mt 110 - 230V AC, 50 - 60Hz Indent Item

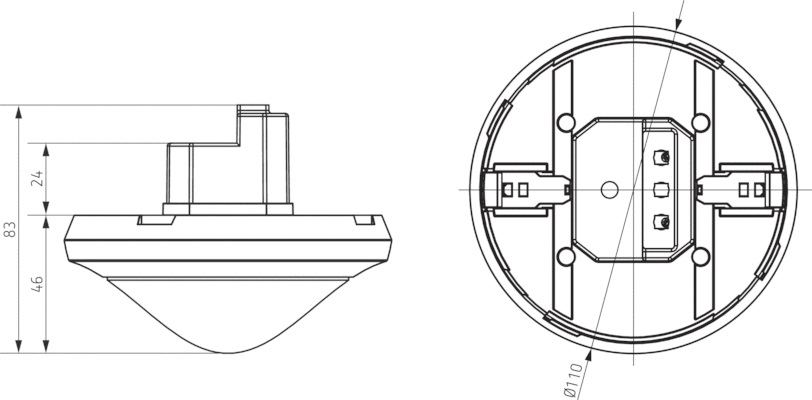

TD_1030600 theMova P360-100 UP WH_technical drawing.jpg
