Theben TR635top2 Weekly Digital Timer with Pulse + Reserve
6350100_TR 635 top2.jpg
View item in Hamer catalogue: Timers & Sensors on page 10
Features
  • Digital time switch with weekly program.
  • 1 channel.
  • Text-based operator guidance in the display
    • Preset date and time
    • Fully operable without mains connection.
  • 84 memory locations.
  • Interface for OBELISK top2 memory card (PC programming)
    • 2 insertable switching program.
    • Copying programs.
    • Storing programs.
  • 10 year power reserve (lithium battery).
  • ON-OFF switching times.
  • Pulse program.
  • Cycle program.
  • Switching pre-selection.
  • Permanent ON/OFF switching.
  • Count-down timer.
  • Integrated hour counter
    • Reset option.
    • Service function for monitoring maintenance intervals.
  • Holiday program.
  • 2 random programs.
  • Back lighting (can be turned off).
  • PIN coding.
  • Automatic summer/winter time changeover
    • Can be deactivated.
    • Date rule options are already stored for Europe, the USA and other countries.
    • Own date rule options or changeover around set dates are available.
Theben
Code Cat# Supply Voltage Current Resistive Current Inductive Number of Channels Battery Reserve Memory Locations Shortest Switching Time Features Notes
6350100 6350100 230 - 240 V AC 16A 10A 1 Y 84 1 sec Integrated operating hour counter and holiday program Indent Item

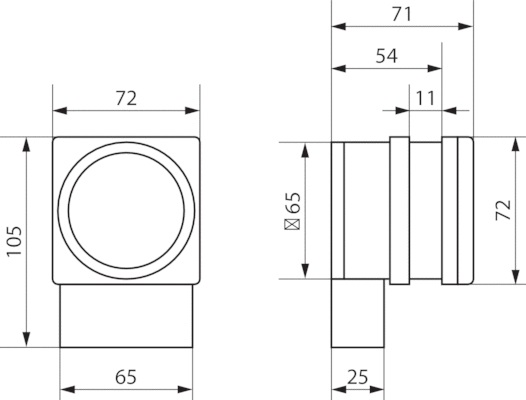

TD_6350100 TR 635 top2 technical drawing.jpg
