Theben TR609top2S Weekly Digital Timer + Reserve

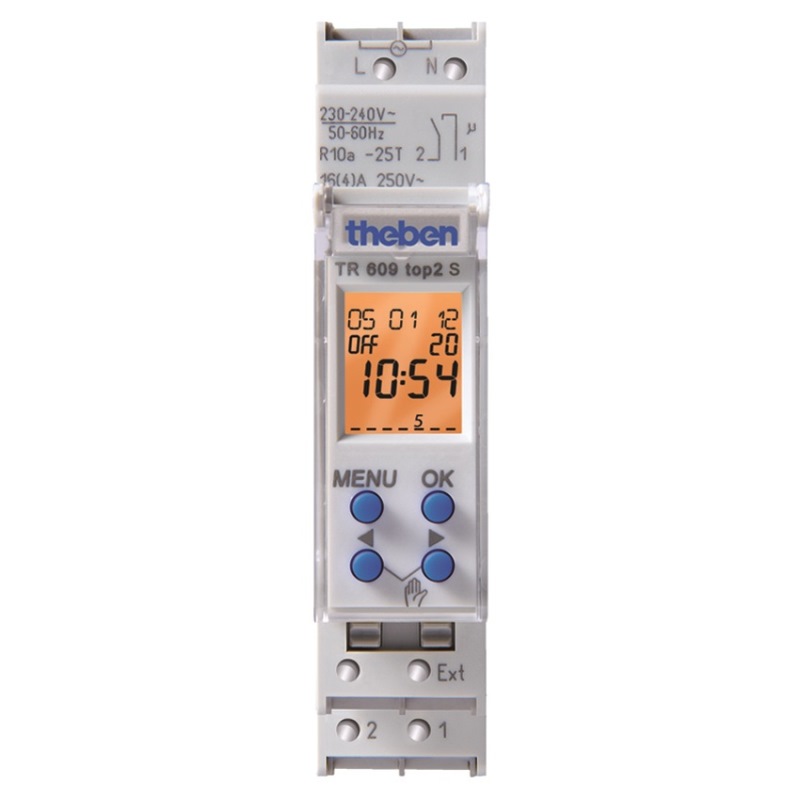

6090101_TR 609 top2 S.jpg
View item in Hamer catalogue: Timers & Sensors on page 10
Features
  • Digital time switch with weekly program.
  • 1 channel.
  • 84 memory locations.
  • External input
    • Connectable sensors (external selector switch, sequence timer).
    • Connectable switches (ON or OFF permanent switching).
  • Pulse program.
  • Cycle program.
  • Timer countdown.
  • 2 random programs.
  • DuoFix spring terminals
    • For 2 conductors each.
    • Wire or strand (with or without wire end sleeve).
    • Wire diameter: 0,5 - 2,5 mm².
    • Button for releasing plug-in connection.
  • Text-oriented user guidance in display
    • Preset date and time.
    • Fully operable without mains connection.
  • Interface for OBELISK top2 memory card (PC programming)
    • 2 insertable switching program.
    • Copying programs.
    • Storing programs.
  • 10 year power reserve (lithium battery).
  • ON-OFF switching times.
  • Switching pre-selection.
  • Permanent switching ON/OFF.
  • Integrated operating hour counter
    • Reset option.
    • Service function for monitoring maintenance intervals.
  • Holiday program.
  • Permanent switching ON/OFF.
  • PIN coding.
  • Automatic summer/winter time changeover.
    • Can be deactivated.
    • Date rule options are already stored for Europe, the USA and other countries.
    • Own date rule options or changeover around set dates are available.
Theben
Code Cat# Supply Voltage Current Resistive Current Inductive Number of Channels Battery Reserve Memory Locations Shortest Switching Time Features Notes
6090101 6090101 230-240VAC 16A 4A 1 Y 84 1 s Integrated operating hour counter and holiday program Indent Item

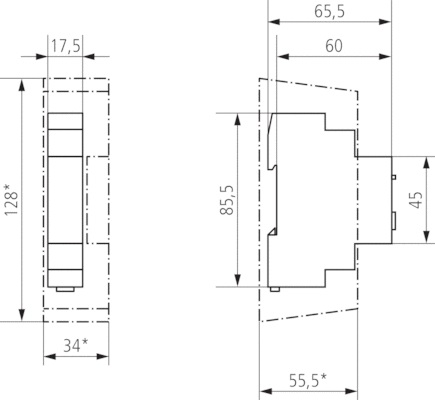

TD_6090101 TR 609 top2 S technical drawing.jpg
