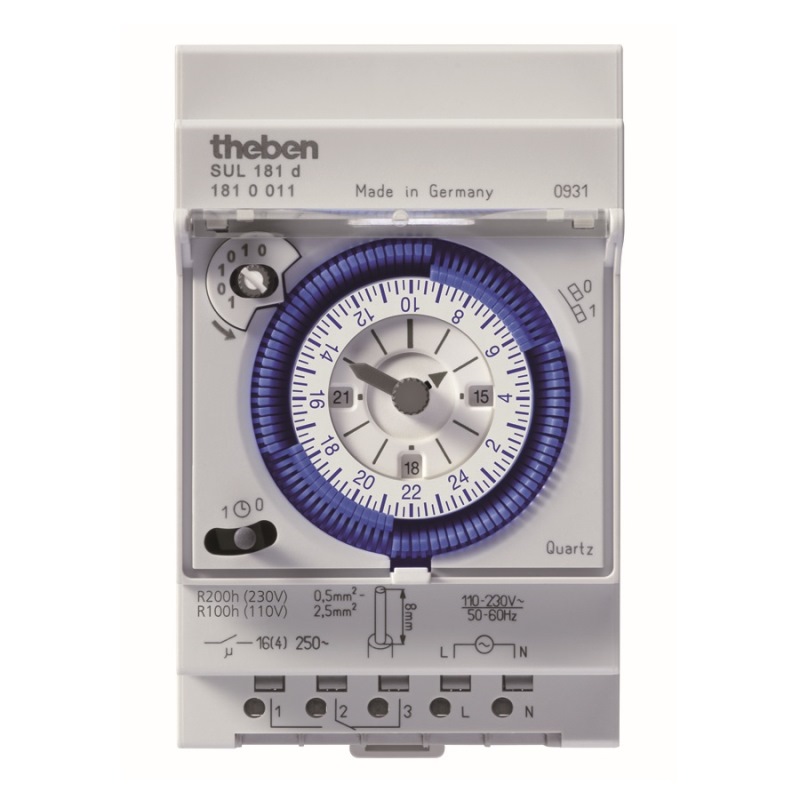

Theben SUL181d Daily Analogue Time Switch + Reserve
View item in Hamer catalogue: Timers & Sensors on page 18
Features
  • Analogue time switch.
  • 1 channel.
  • Daily program.
  • DIN mount, 3 module width.
  • With 200hr power reserve (NiMH rechargeable battery).
  • 96 switching segments.
  • Quartz controlled.
  • Shortest switching time of 15 minutes.
  • Clock hands for time display and in addition 12/24 hour recognition.
  • Simple summer/winter time correction
    • Time to be changed clockwise.
  • DuoFix spring terminals.
  • For 2 conductors each.
    • Wire or strand (with or without wire end sleeve).
    • Wire diameter 0,5 - 2,5 mm².
    • Button for releasing plug-in connection.
  • Switching pre-selection.
  • Manual switch with 3 positions - Continuous ON/AUTO/continuous OFF.
  • Switching status display.
Theben
Code Cat# Supply Voltage Current Resistive Current Inductive Number of Channels Battery Reserve Switching Segments Shortest Switching Time Features
1810011 1810011 110-230VAC 16A 4A 1 Y 96 15 mins Manual Switch, Permanent ON/ AUTO/ continuous OFF

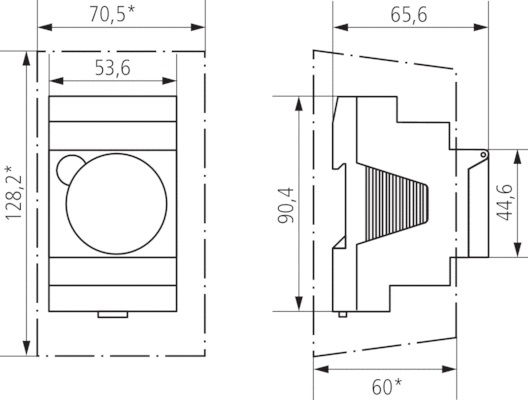

TD_1810011 SUL181d_technical drawing.jpg
