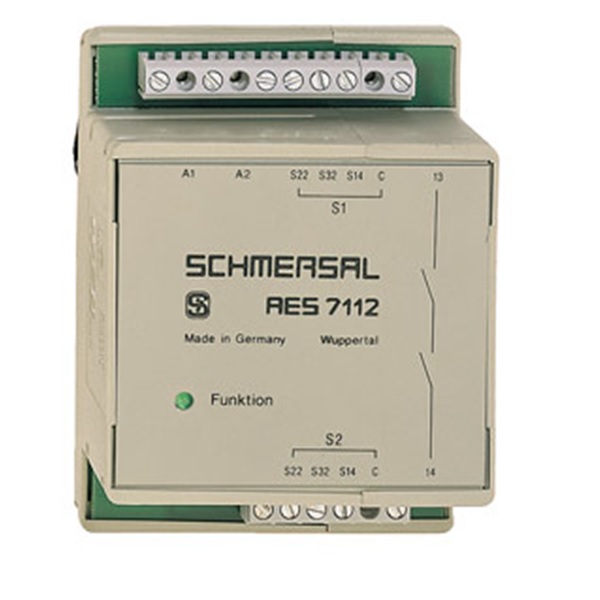

Schmersal Safety Monitoring Module - AES 7112.3
Features
  • Schmersal AES micro processor based safety monitoring modules are used to monitor the reed contact of non-contact safety-solenoid switches.
  • They also function as a current limiter for the reed contact.
  • Typical applications - guard system, BNS safety sensor.
  • Mounting - snaps onto standard DIN rail to EN 60715.
  • AC actuation (24VAC rated operational voltage).
  • Resets after disconnection of supply voltage.
  • With short-circuit recognition.
  • One LED switching condition.
Code Cat# Dimensions W x H x D PL / SIL Min/Max Rated AC Voltage for Controls Inputs Outputs Switching Capacity of Safety Contacts Notes
1120016 AES 7112.3 105mm x 96mm x 58mm up d / up 2 20.4V / 26.4V 2 x 2 shutters, 2 x 1 openers 1 safety contact, no aux. contact, no signalling outputs max. 250VAC, max. 5A; min. >10mA Indent Item

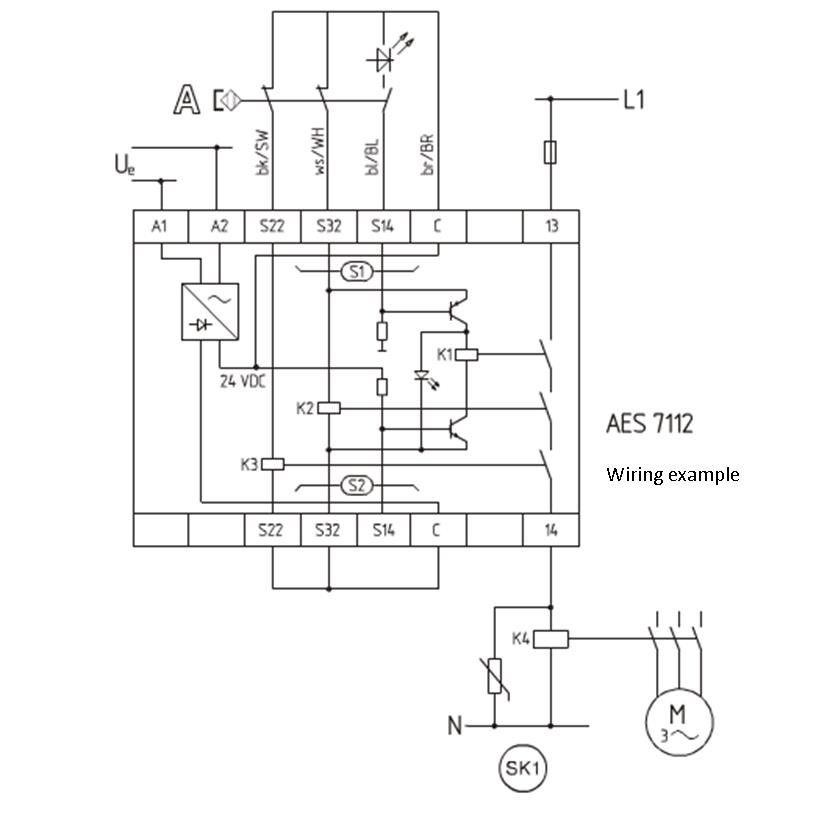

TD_AES 7112.jpg
