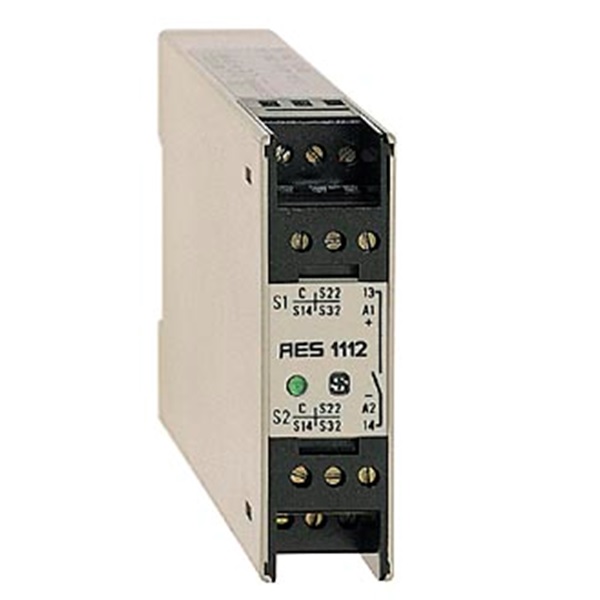

Schmersal Safety Monitoring Module - AES 1112
Features
  • Schmersal AES micro processor based safety monitoring modules are used to monitor the reed contact of non-contact safety-solenoid switches.
  • They also function as a current limiter for the reed contact.
  • Typical applications - guard system, BNS safety sensor.
  • Mounting - snaps onto standard DIN rail to EN 60715.
  • DC actuation.
  • Resets after disconnection of supply voltage.
  • One LED switching condition.
Code Cat# Dimensions W x H x D PL / SIL Min/Max Rated DC Voltage for Controls Inputs Outputs Switching Capacity of Safety Contacts
1128982 AES 1112 22.5mm x 75mm x 110mm up c / up 1 20.4V / 27.6V 1 shutter, 2 openers 1 safety contact, no aux. contact, no signalling outputs max. 4A / 6A
