Schmersal Non-Contact Magnetic reed Switch - BN 20-RZ
Features
  • Schmersal magnetic reed switches complement the plunger, roller and turning head-operated limit switches.
  • The contacts of the switch are protected from dust, humidity and corrosion through the enclosed glass tube, giving them extraordinarily high contact reliability.
  • Aluminium enclosure.
  • Protection class IP67.
  • Long life.
  • Many different actuators available - must be purchased separately.
  • Non-contact principle.
  • Highly resistant to vibration.
  • Other variants available on request.
  • Minor differences between the printed image and the original product may exist.
Code Cat# Dimensions W x H x L Switching Voltage and Capacity Snap-in Contacts Control Element Design Control Output Design LED Switching Display Electrical Connection

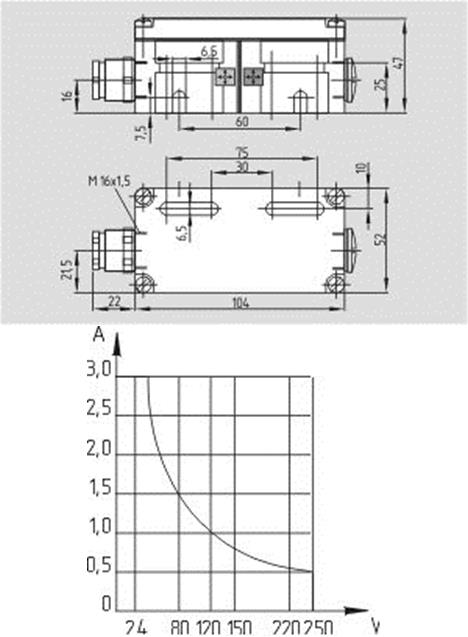

1168090 BN 20-RZ 104mm x 52mm x 47mm Max. 250 VAC / Max. 120 VA / W One Bistable contact Reed contacts No Screw connection
