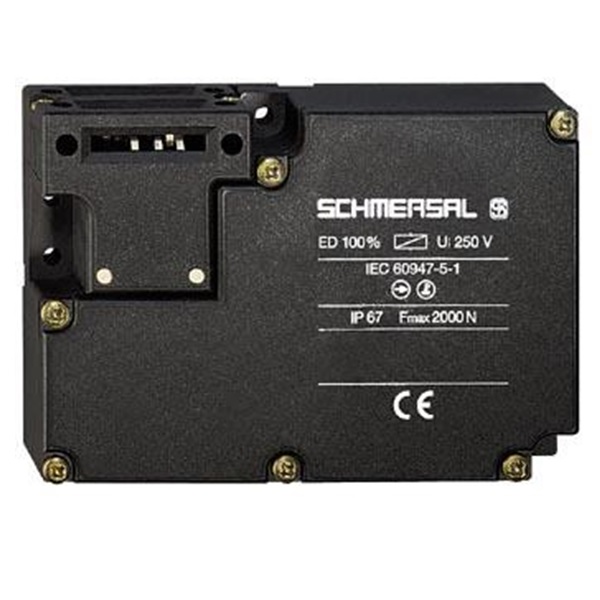

Schmersal AZM 161 Solenoid Interlock - AZM 161SK-12/12RK-024
AZM162
Features
  • Schmersal AZM range solenoid interlocks, operating in combination with control elements of a machine (fail-safe standstill monitors or fail-safe delay timers), ensure that sliding, hinged and removable guarding devices, such as grids, hoods or doors, cannot be opened until hazardous conditions (e,g running-down movements) have come to an end.
  • Thermoplastic enclosure.
  • Actuator sold separately (AZM 161--- type).
  • Long life.
  • Double insulated.
  • Protection class IP67.
  • High holding force.
  • Manual release.
  • Up to 6 contacts.
  • Power to unlock.
  • Four cable entries M 16 x 1,5.
  • Other variants available on request.
  • Minor differences between the printed image and the original product may exist.
Code Cat# Dimensions W x H x L Rated Control Voltage Maximum Power Consumption Contacts Latching Force Positive Break Force/Travel Electrical Connection
1164207 AZM 161SK-12/12RK-024 130mm x 90mm x 30mm 24 VAC/DC 10 W 2NO/4NC 30N 20N / 10mm Screw connection
