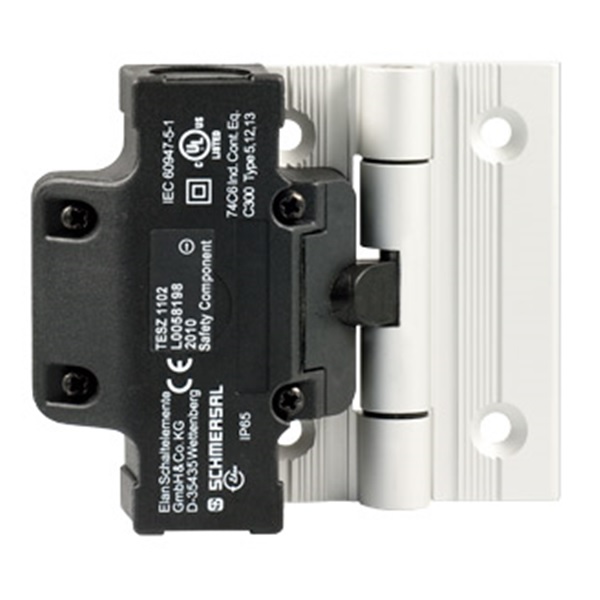

Schmersal Hinge Safety Switch for Hinged Guards - TESZ1102
Features
  • Schmersal hinge safety switches are suitable for hinged safety guards, which need to be closed to ensure the necessary operational security.
  • Designed for general use on safety doors of machinery and equipment.
  • The cam is integrated within the safety switch, which protects against tampering and creates positive linkage between cam and actuator.
  • Thermoplastic enclosure, protection class IP65.
  • Double insulated.
  • Aluminium hinge.
  • Simple fitting, especially on 40mm profiles.
  • Good resistance to oil and petroleum spirit.
  • 2 cable entries M 20 x 1,5.
  • Other varieties available on request.
  • Minor differences between the printed image and the original product may exist.

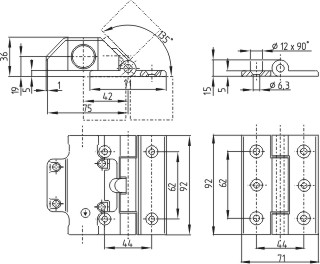

Code Cat# Dimensions (W x L x H) Control Element Design Switching Principle Electrical Connection Utilisation Category Notes
1028407 TESZ1102 111.5mm x 36mm x 96mm 1NO/2NC Creep circuit element Screw Connection AC-15: 230 V / 2 A, DC-13: 24 V / 1 A Indent Item
