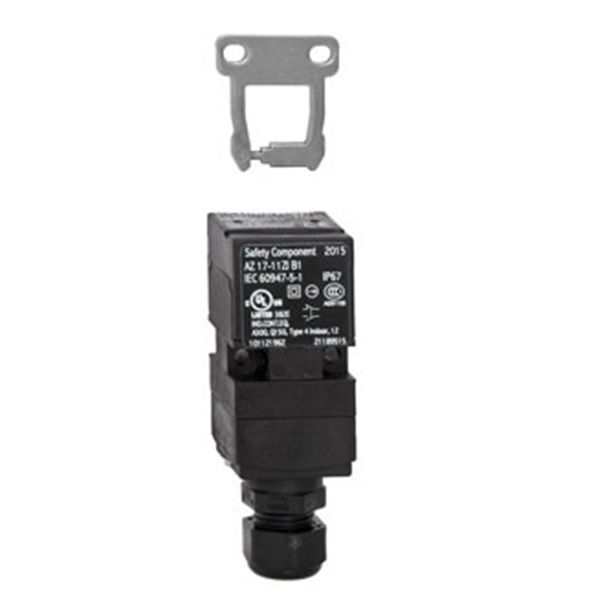

Schmersal Safety Switch with Separate Actuator - AZ 17-11ZI-B5
Features
  • Schmersal safety switches with separate actuators are suitable for monitoring the position of hinged, sliding and particularly for removable safety guards, which need to be closed to ensure the necessary operational security.
  • When the guarding device is opened, the actuator is separated from the base unit - in the process, NC contacts are positively opened and NO contacts closed.
  • Not easily bypassed.
  • Thermoplastic enclosure, protection class IP67.
  • Double insulated.
  • Particularly suitable for hinged guards (front mounting).
  • Small body with 8 actuating planes.
  • Individual coding - includes actuator B5.
  • Long life.
  • Latching force 5N.
  • Includes M16 cable gland and slot sealing plug.
  • Other varieties available on request.
  • Minor differences between the printed image and the original product may exist.

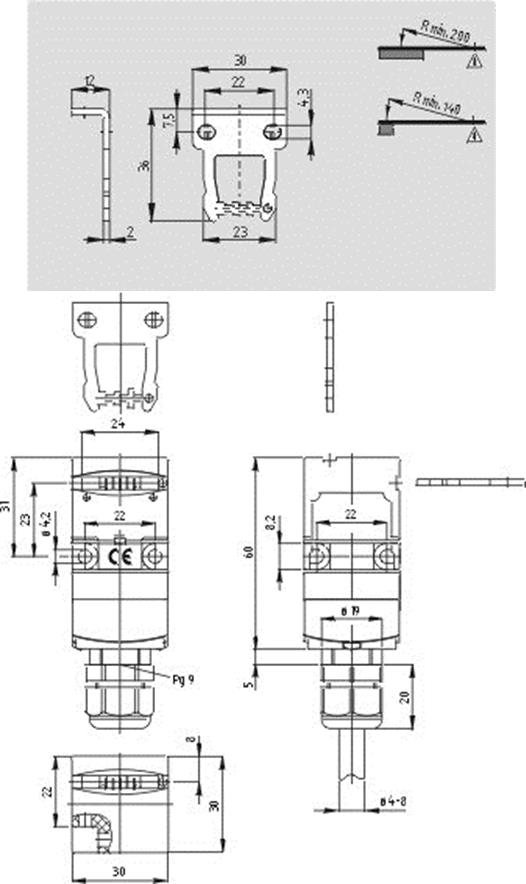

Code Cat# Dimensions (W x L x H) Control Element Design Switching Principle LED Switching Display Electrical Connection Utilisation Category Notes
1122853 AZ 17-11ZI-B5 30mm x 30mm x 85mm 1NO/1NC Creep circuit element No IDC method of termination AC-15: 230 V / 4 A, DC-13: 24 V / 4 A Indent Item
