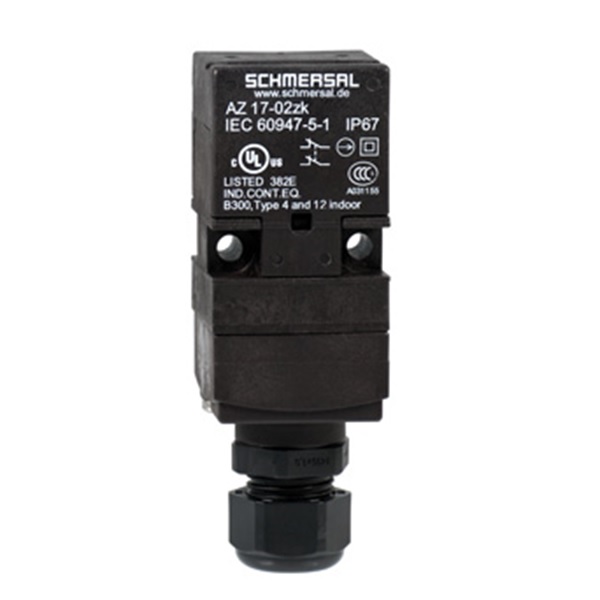

Schmersal Safety Switch with Separate Actuator - AZ 17-02ZRK
Features
  • Schmersal safety switches with separate actuators are suitable for monitoring the position of hinged, sliding and particularly for removable safety guards, which need to be closed to ensure the necessary operational security.
  • When the guarding device is opened, the actuator is separated from the base unit - in the process, NC contacts are positively opened and NO contacts closed.
  • Not easily bypassed.
  • Thermoplastic enclosure, protection class IP67.
  • Double insulated.
  • Small body with 8 actuating planes.
  • Multiple coding.
  • Long life.
  • With higher latching force 30N.
  • Includes M16 cable gland.
  • Other varieties available on request.
  • Minor differences between the printed image and the original product may exist.

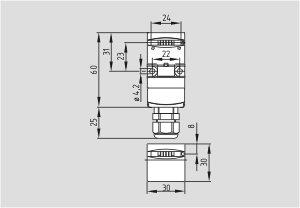

Code Cat# Dimensions (W x L x H) Control Element Design Switching Principle LED Switching Display Electrical Connection Utilisation Category
1133968 AZ 17-02ZRK 30mm x 30mm x 85mm 2NC Creep circuit element No IDC method of termination AC-15: 230 V / 4 A, DC-13: 24 V / 4 A
